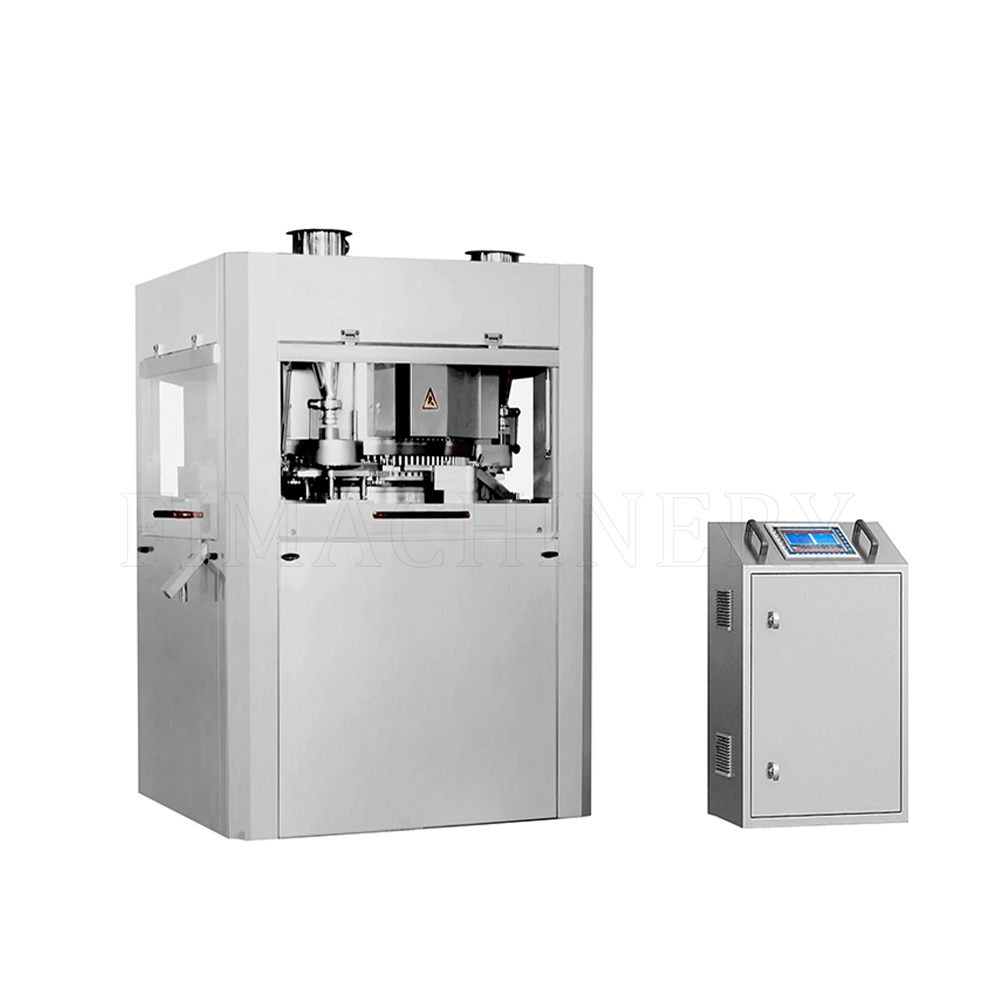

High Speed tablet Pressing Machine
FI-1060HTP Series
1060 Series high-speed double-sided tablet presses can complete the pressing process twice in one turret rotation, including filling, dosing, prepressing, pressing and ejecting. These tablet presses are ideal for the mass production of tablets. This double-sided tablet press adopts modular structure design. Major components of this machine including track, main-press roller, pre-compression roller, feeder and dosing device are easy to dismantle, clean and maintain. GZPT tablet press fully meets GMP requirements and is capable of producing double-layer and two-tone tablets, as well as round, irregular, engraved and annular tablets.
Model: 1060HTP Series
Punch quantity: 76-113 sets
Max. tablet diameter: 20mm
Max. output: 1037000 tablets/hour
Dimensions: 1720×1720×2185mm
Details: Suitable applications：Pharmaceutical, food
TECHNICAL SPECIFICATIONS
PRODUCT PARAMETER
| Model | FI- 1060/76 HTP | FI- 1060/95 HTP | FI- 1060/113 HTP |
|---|---|---|---|
| No. of stations | 76 | 95 | 113 |
| Punch type | D | B | BB |
| Max output (Tablets / Hour) | 697000 | 872000 | 1037000 |
| Rotation speed range (rpm) | 5 to 51 | ||
| Max. main pressure (kn) | 100 | ||
| Max. Filling Depth (mm) | 20 | 20 | 16 |
| Range of Tablet Thickness (mm) | 1 to 8.5 | 1 to 8.5 | 1 to 8.5 |
| Max. Tablet Diameter (mm) | 25 | 16 | 13 |
| Weight (kg) | 8000 | ||
| Dimensions (mm) | 1720 x 1720 x 2185 |
PRODUCT ADVANTAGES
Reliable Performance
Stable performance for continuous pharmaceutical production.
Easy Operation
Clear controls and practical adjustment for daily use.
Flexible Configuration
Configured to meet different process and output needs.
