Fully Automatic Powder Capsule Filling Machine

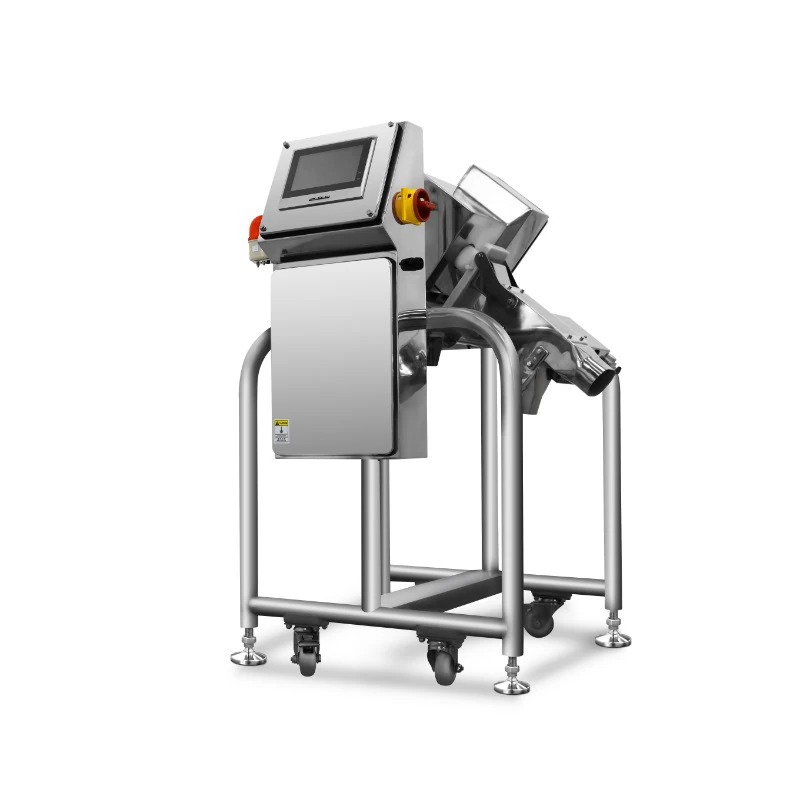

FI-TMD Series Tablet Metal Detection Machine
Metal Detector for Tablets provides high-sensitivity, stable detection of ferrous, non-ferrous and stainless-steel contaminants. It is suitable after tablet presses, capsule fillers and tablet dedusters.
Model: FI-TMD
Filling dosage form: Powder or pellets
Capsule size: Capsule size 00"-5" and safety capsules A-E
Max. output: 72000 capsules/hour
Noise: ≤75 DB(A)
Weight: 1000kg
Dimensions: 1100×910×2100mm
TECHNICAL SPECIFICATIONS
PRODUCT PARAMETER
| Model | Model | TMD-50 | TMD-75 |
|---|---|---|---|
| Tube Internal Diameter | Tube Internal Diameter | Φ50mm | Φ75mm |
| Sensitivity | Fe | Φ0.3mm | Φ0.3mm |
| Sensitivity | SUS304 | Φ0.5mm | Φ0.5mm |
| Display Mode | Display Mode | TFT touch screen | TFT touch screen |
| Operation Mode | Operation Mode | Touch input | Touch input |
| Product Storage Quantity | Product Storage Quantity | 100kinds | 100kinds |
| Channel Material | Channel Material | Food grade plexiglass | Food grade plexiglass |
| Rejecter Mode | Rejecter Mode | Automatic rejection | Automatic rejection |
| Power Supply | Power Supply | AC220V (Optional) | AC220V (Optional) |
| Pressure Requirement | Pressure Requirement | ≥0.5Mpa | ≥0.5Mpa |
| Main Material | Main Material | SUS304(Product contact parts:SUS316) | SUS304(Product contact parts:SUS316) |
PRODUCT ADVANTAGES
Reliable Performance
Stable performance for continuous pharmaceutical production.
Easy Operation
Clear controls and practical adjustment for daily use.
Flexible Configuration
Configured to meet different process and output needs.
