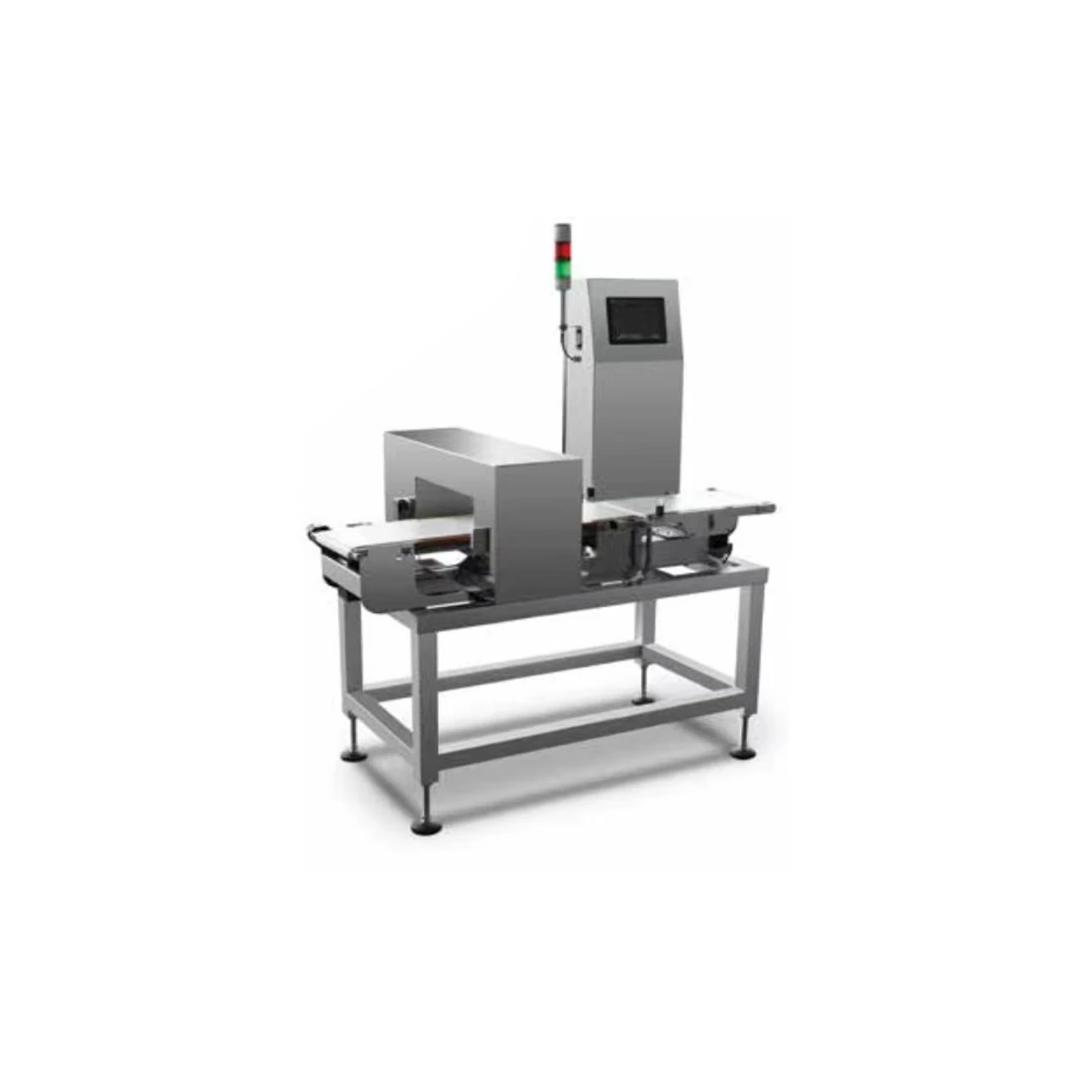

FI-150MD Weight Check And Metal Detection Combo Machine
This high-speed weighing and metal detection machine delivers industry-leading accuracy with belt speeds up to 70 m/min and throughput exceeding 200 bags/min. Automatic dynamic zero-point tracking ensures long-term stability without daily calibration. The stainless steel frame features a built-in hinge design with no sanitary dead corners and quick belt disassembly for easy cleaning. Available in IP30/IP54/IP65 protection ratings, it is equipped with a full-color touch screen, 100-product database, multi-level password protection, data statistics and USB export, providing accurate, efficient and reliable quality inspection.
Model: FI-150MD
Detecting range: 10-600 g
Accuracy (3σ): ±0.1 g
Max. speed: 250 bpm
Maximum belt speed: 70 m/min
TECHNICAL SPECIFICATIONS
PRODUCT DETAILS
| Item | Specification |
|---|---|
| Detecting range | 10-600 g |
| Scale interval | 0.05 g |
| Accuracy (3σ) | ±0.1 g |
| Detecting speed (max.) | 250 bpm |
| Maximum belt speed | 70 m/min |
| Sensitivity | Fe ≥ Φ0.5 mm; SUS304 ≥ Φ1.2 mm |
| Detection width | 160 mm |
| Detection height | 280 mm |
