Powder Filling Machine

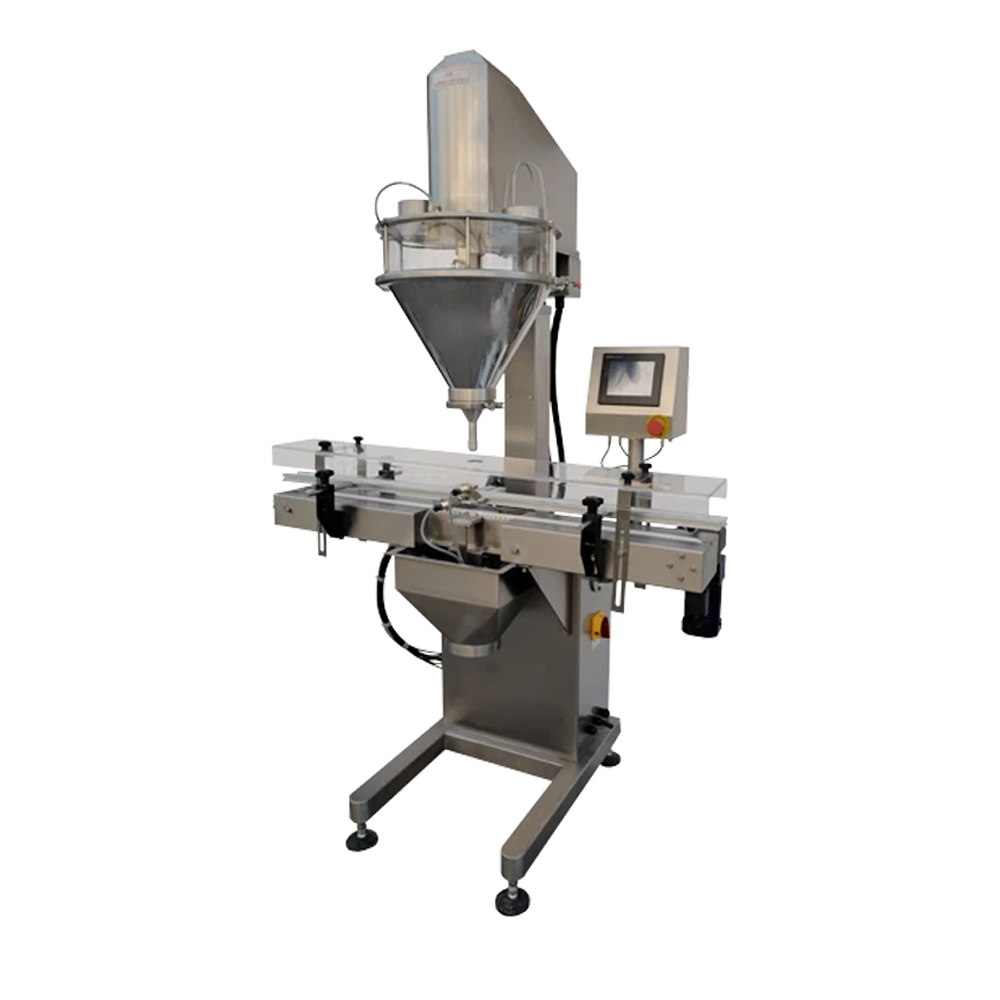

FI-1PBF Automatic Auger filling machine
This economical machine offers a complete powder and granular filling solution. It features a filling head and independent motorized chain conveyor to reliably position, fill, and discharge containers. Ideal for low-fluidity materials like milk powder, pharmaceuticals, condiments, coffee, and agricultural pesticides.
Model: FI-1PBF
Filling weight: 10- 5000g
Filling speed: 15 – 40 bottles per min
Power supply: 3P AC208-415V 50/60Hz
Hopper volume: 50L
TECHNICAL SPECIFICATIONS
PRODUCT PARAMETER
| Parameter | Specification |
|---|---|
| Dosing mode | Directly dosing by auger |
| Filling weight | 10- 5000g |
| Filling Accuracy | ≤ 500g, ≤±1%；＞500g, ≤±0.5% |
| Filling Speed | 15 – 40 bottles per min |
| Power Supply | 3P AC208-415V 50/60Hz |
| Air Supply | 6 kg/cm2 0.05m3/min |
| Total power | 1.6Kw |
| Total Weight | 300kg |
| Overall Dimensions | 2000×970×2030mm |
| Hopper Volume | 50L |
