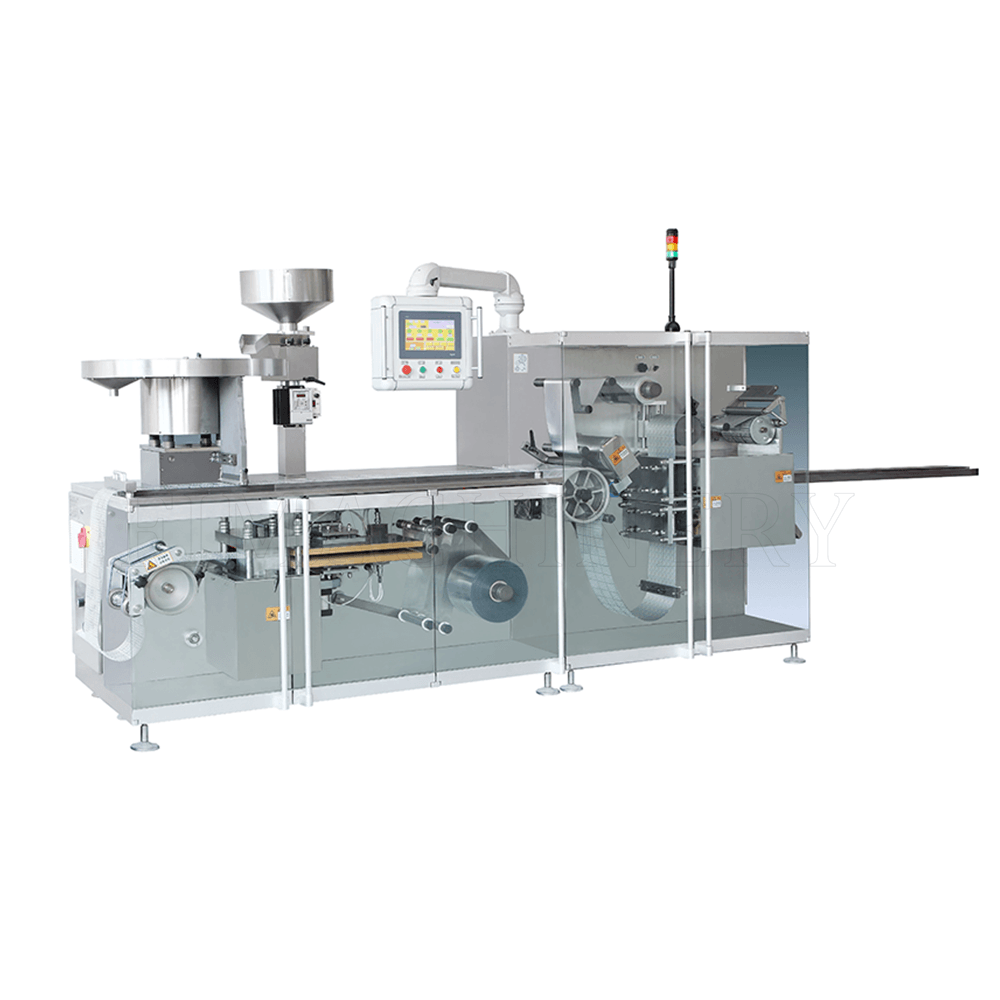

High Speed Blister Packing Machine
FI-220HBP Model
FI-2 2 0HBP high-speed blister packing machine is designed bases on synchronization of optical, electrical and pneumatic with Frothing Forming, Rotary Heat sealing, more easily on operational and more stable on production. The main application of the machine will be used in Aluminum/PVC or Aluminum/Aluminum blister packaging for Pharmaceutical Industry, Food Supplement industry and food industry.
Model: 220HBP
Max. punch frequency: 150 times/min
Max forming area and depth: 180×220×12mm
Details: Features：Meet GMP requirement
Weight: 2400kg
Dimensions: 3130×1150×1900mm
TECHNICAL SPECIFICATIONS
PRODUCT PARAMETER
| Parameter | Specification |
|---|---|
| Model | FI-2 20HBP |
| Max capacity | 27 000 pcs/hour |
| Max punch frequency | 150 times/min |
| Max forming area and depth | 18 0× 22 0×1 2mm |
| Air Supply | Air consumption: 12 m³ /h Pressure: 5 -7 Kg |
| Dimensions | 3130 ×1 150 ×190 0 mm |
| Weight | 24 00 kg |
PRODUCT ADVANTAGES
Reliable Performance
Stable performance for continuous pharmaceutical production.
Easy Operation
Clear controls and practical adjustment for daily use.
Flexible Configuration
Configured to meet different process and output needs.
