Rotary Tablet Pressing Machine

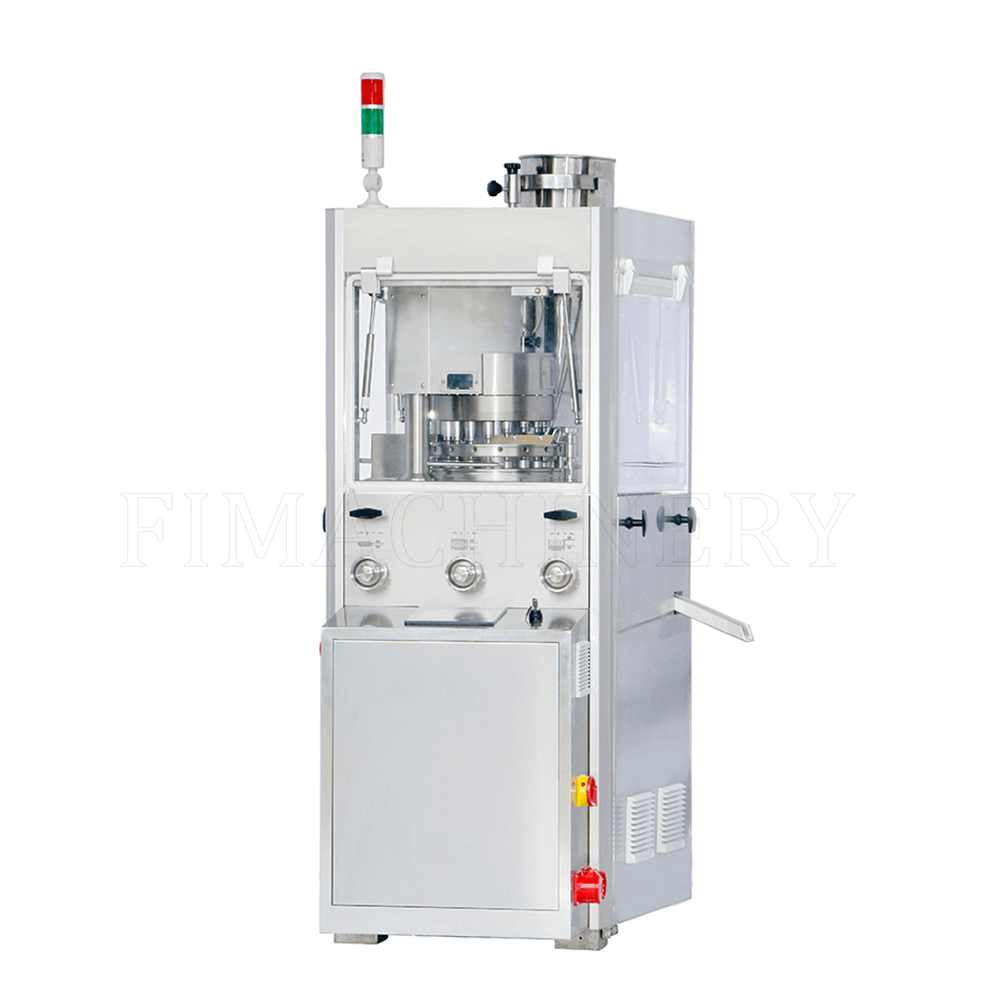

FI-260TP Series Tablet Press Machine
This machine is a continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.
Model: 260TP Series
Punch quantity: 17-21 sets
Max. tablet diameter: 20mm
Max. output: 50000 tablets/hour
Dimensions: 615×890×1415 mm
Details: Suitable applications：Pharmaceutical, food
TECHNICAL SPECIFICATIONS
PRODUCT PARAMETER
| Model | FI-260/17 TP | FI-260/19 TP | FI-260/21 TP |
|---|---|---|---|
| No. of stations | 17 | 19 | 21 |
| Max. output (Tablets / Hour) | 40000 | 45600 | 50000 |
| Max. main pressure (kn) | 60 | ||
| Max. Filling Depth (mm) | 15 | 15 | 15 |
| Range of Tablet Thickness (mm) | 1 to 6 | 1 to 6 | 1 to 6 |
| Max. Tablet Diameter (mm) | 20 | 12 | 11 |
| Weight (kg) | 850 | ||
| Dimensions (mm) | 615 × 890 × 1 415 |
PRODUCT ADVANTAGES
Reliable Performance
Stable performance for continuous pharmaceutical production.
Easy Operation
Clear controls and practical adjustment for daily use.
Flexible Configuration
Configured to meet different process and output needs.
