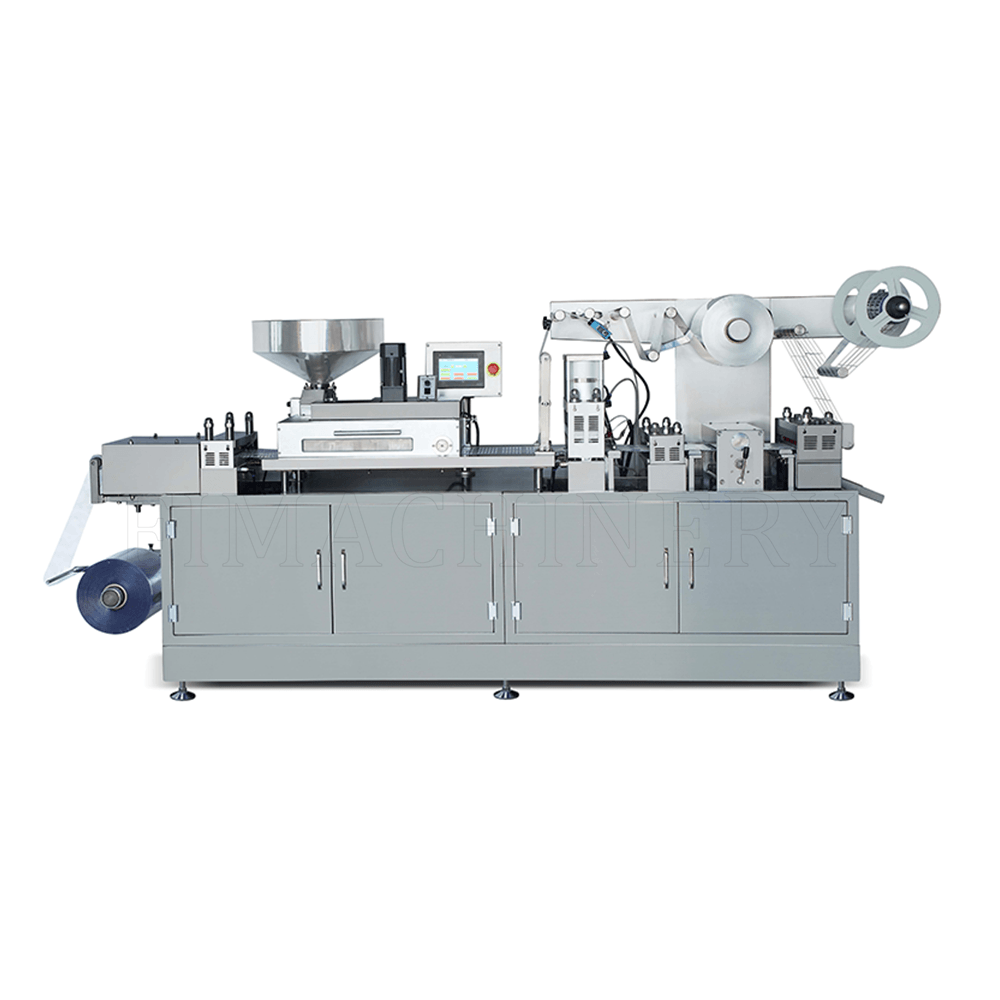

Alu-plastic Blister Packing Machine
FI-250/350BP Model
FI- 250 / 350 SP flat-plate a utomatic blister packing machine ( Lathe guide rail type ) is widely used for capsule, tablet, honey pills in pharmaceutical industry, for milk tablet, candy, chewing gum, jam and liquid chocolate in food industry, for injector, syringes, needles in medical industry, facial mask, eye pad in cosmetics industry, as all kind of shapes of ALU-ALU, ALU-plastic, paper-plastic combined sealing packing.
Model: 350BP
Punch frequency: 6-60 times/min
Max forming area and depth: 350×110×10mm
Details: Features：Meet GMP requirement
Weight: 1900kg
Dimensions: 3700×850×1640mm
TECHNICAL SPECIFICATIONS
PRODUCT PARAMETER
| Model | FI- 250 BP | FI- 350 BP |
|---|---|---|
| Capacity | 9600-12000 pcs/hour | 12000-15000 pcs/hour |
| Punch frequency | 6 – 60 times/min | 6 – 60 times/min |
| Max forming area and depth | 250×110×10 mm | 350 ×110×10 mm |
| Air Supply | Air consumption: 18 m³ /h Pressure: 6 -8 Kg | Air consumption: 18 m³ /h Pressure: 6 -8 Kg |
| Dimensions | 3000x720x1600mm | 37 00×85 0×1640mm |
| Weight | 17 00kg | 19 00kg |
PRODUCT ADVANTAGES
Reliable Performance
Stable performance for continuous pharmaceutical production.
Easy Operation
Clear controls and practical adjustment for daily use.
Flexible Configuration
Configured to meet different process and output needs.
