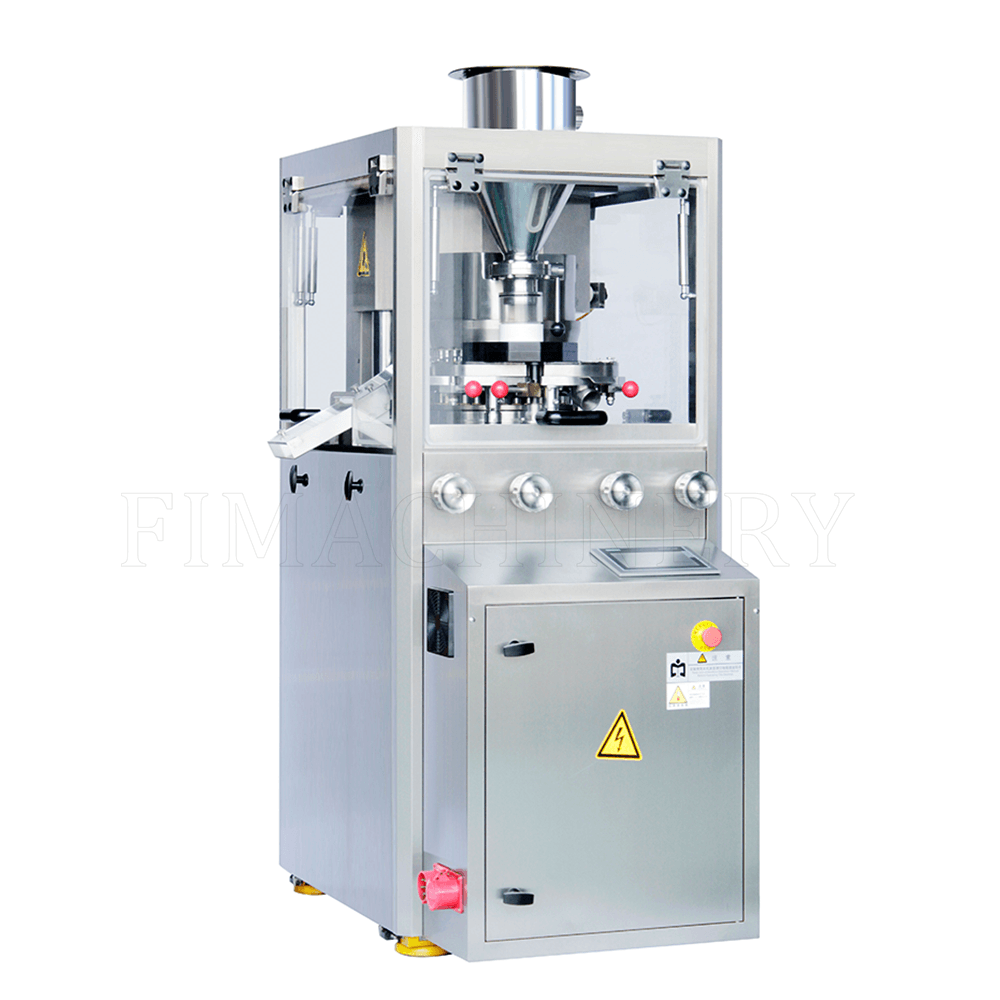

High Speed tablet Pressing Machine
FI-265HTP Series
The 265 Series single-sided high-speed tablet presses can finish the tablet press process in one turret rotation, including filling, dosing, prepressing, pressing and ejecting. These tablet presses feature a modular design. The frame structure of main machine is comprised of a base plate, left and right frames and an upper plate. All cam tracks are attached at the base. Upper cam track, upper pre-compression roller and upper main-press roller are attached to the supporting block. The stable three-column structure is engineered with strong bending and torsion resistance in order to meet the tough loading requirements when these machines operates at a high speeds.
Model: 265HTP Series
Punch quantity: 16-30 sets
Max. tablet diameter: 20mm
Max. output: 198000 tablets/hour
Dimensions: 700×1000×1750mm
Details: Suitable applications：Pharmaceutical, food
TECHNICAL SPECIFICATIONS
PRODUCT PARAMETER
| Model | FI-265 /16 HTP | FI-265 /25 HTP | FI-265 /30 HTP |
|---|---|---|---|
| No. of stations | 16 | 23 | 30 |
| Punch type | D | B | BB |
| Output range (tablets/h) | 21000 – 105000 | 30000 – 151000 | 39000 – 198000 |
| Rotation speed range (rpm) | 22 to 110 | ||
| Max. main pressure (kN) | 100 | ||
| Max. Pre-pressure (kN) | 14 | ||
| Max. Filling Depth (mm) | 20 | 16 | 16 |
| Range of Tablet Thickness (mm) | 1 to 8.5 | 1 to 8.5 | 1 to 8.5 |
| Max. Tablet Diameter (mm) | 25 | 16 | 13 |
| Weight (kg) | 1200 | ||
| Dimensions (mm) | 700 × 1000 × 1750 |
PRODUCT ADVANTAGES
Reliable Performance
Stable performance for continuous pharmaceutical production.
Easy Operation
Clear controls and practical adjustment for daily use.
Flexible Configuration
Configured to meet different process and output needs.
