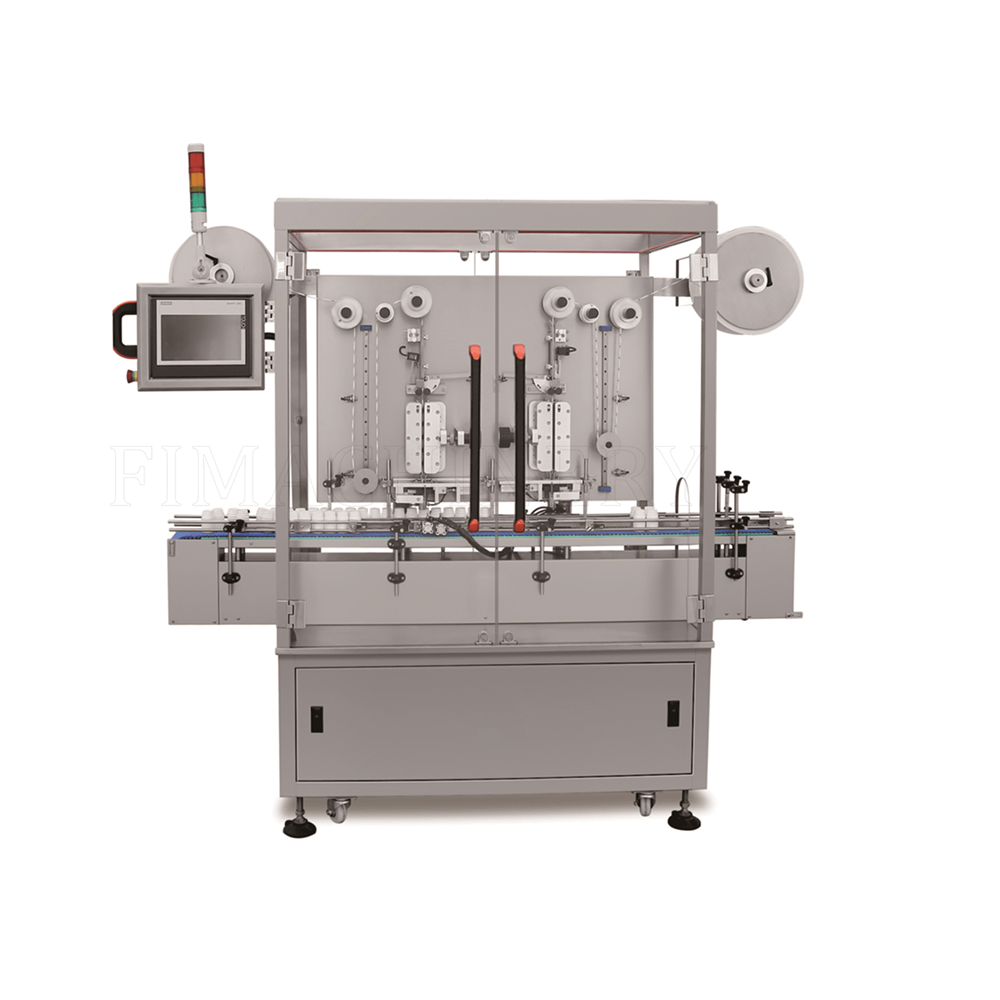

Desiccant Inserting Machine
FI-2DI Model
FI-2DI high-speed desiccant inserting machine is suitable for all type of bottles, bottle height, size and cap diameter can be adjusted—no change parts are needed . It can work independently or can be integrated with the packaging line. Automatic stops function for open-door, will guarantee safety of operator. Pre-programming system control helps easy operate showing all parameters on the interface panel.
Model: 2DI
Max. output: 260 bottles/min
Applicable range: 15-300ml
Features: Control system adopts PLC and HMI
Weight: 320kg
Dimensions: 2000×950×1800mm
TECHNICAL SPECIFICATIONS
PRODUCT PARAMETER
| Parameter | Specification |
|---|---|
| Model | FI-2DI |
| Output | 20-260 bottles / min |
| Applicable range | 15-300 ml |
| Air Supply | Air consumption: 0.3 m³ /h Pressure: 4 -6 g |
| Dimensions | 2000 × 950 ×1 80 0 mm |
| Weight | 320kg |
PRODUCT ADVANTAGES
Reliable Performance
Stable performance for continuous pharmaceutical production.
Easy Operation
Clear controls and practical adjustment for daily use.
Flexible Configuration
Configured to meet different process and output needs.
