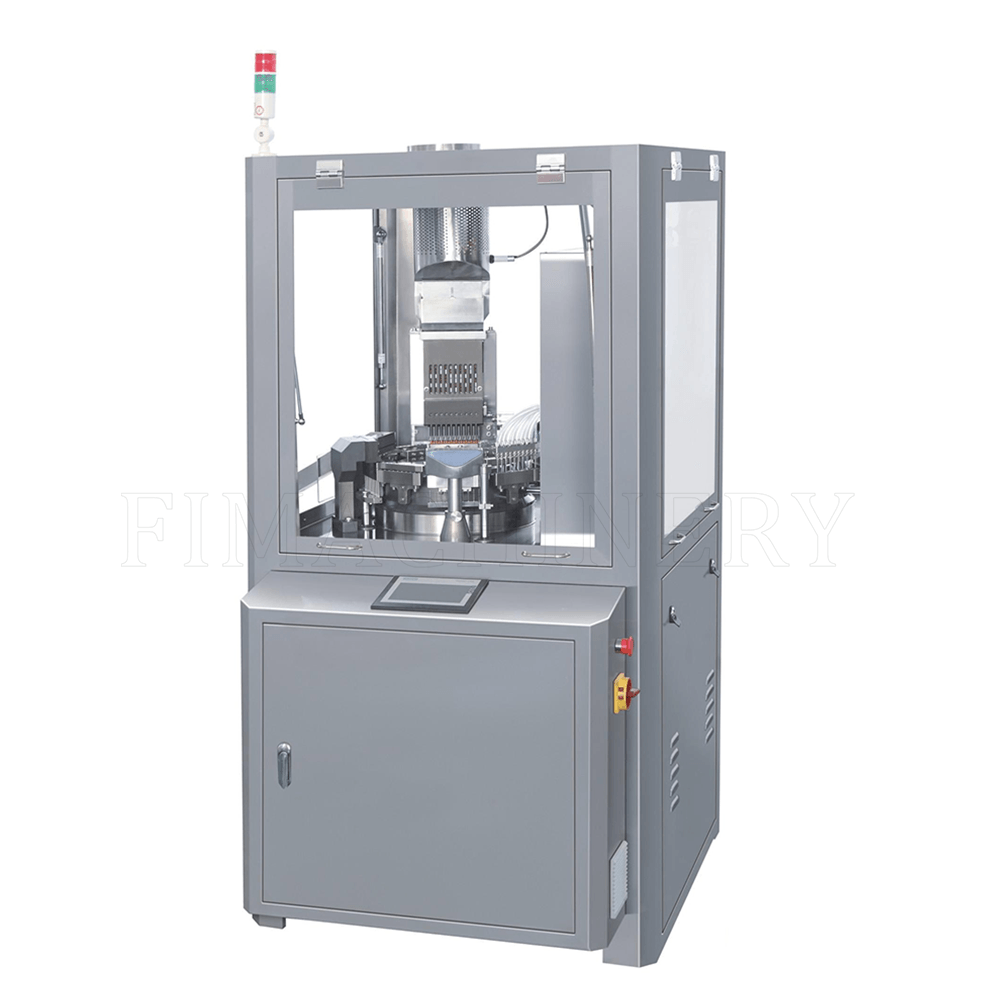

Fully Automatic Liquid Capsule Filling Machine
FI-300CF/L Model
FI-300CF/L hard capsule liquid filling machine is an equipment designed and produced by our company independently, which can complete filling (solution, suspension, micro-emulsion) in the hard capsule. Ceramic pump liquid feeding mode, servo motor control loading system, ensure the loading difference, accurate measurement, optical fiber detection, lack of glue without liquid, automatic elimination function.
Model: 300CF/L
Filling dosage form: Oily liquid, Solution, Suspension, Paste
Capsule size: Capsule size 00"-4"
Max. output: 1800 capsules/hour
Noise: ≤75 DB(A)
Weight: 750kg
Dimensions: 860×960×1800mm
TECHNICAL SPECIFICATIONS
PRODUCT PARAMETER
| Parameter | Specification |
|---|---|
| Model | FI- 300 CF /L |
| Filling dosage form | oily liquid, solution, suspension, paste |
| Capsule size | Capsule size 00"-4 " |
| Max. output | 1800 Capsules / Hour |
| Liquid loading accuracy | ±2% |
| Total power | 5 kw |
| Power supply | AC 380V; 50Hz |
| Dimensions | 860 × 960 × 18 00mm |
| Weight | 75 0kg |
PRODUCT ADVANTAGES
Reliable Performance
Stable performance for continuous pharmaceutical production.
Easy Operation
Clear controls and practical adjustment for daily use.
Flexible Configuration
Configured to meet different process and output needs.
