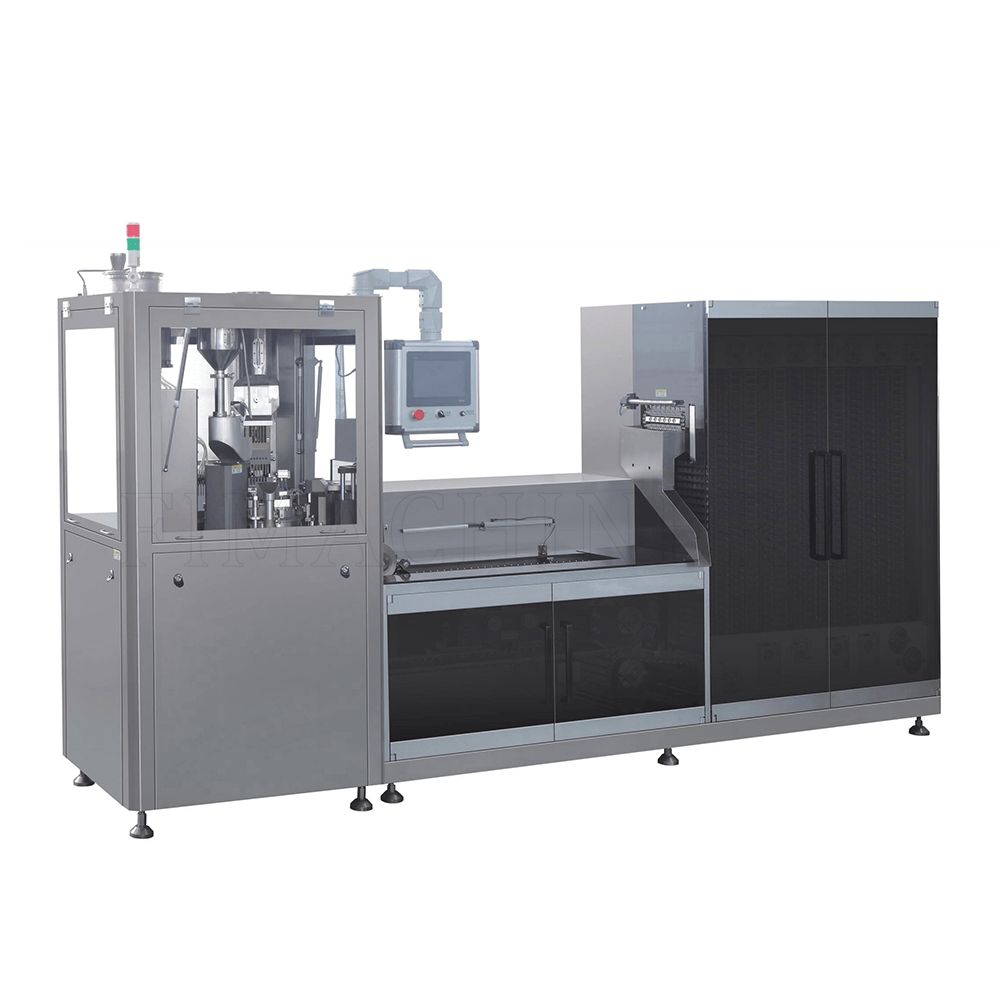

Fully Automatic Liquid Capsule Filling Machine
FI-300CF/LS Model
I- 300 CF /LS automatic hard capsule liquid filling and sealing linkage line equipment, is the [domestic first] connecting equipment of hard capsule filling liquid filling and sealing, which is independently developed, designed and produced by our company on the basis of years of capsule filling technology, and owns independent intellectual property rights and a number of technical invention patents. The device can be used to fill hard capsules (solutions, suspensions, microemulsion or hot soluble substances) and seal the binding parts of capsule caps.
Model: 300CF/LS
Filling dosage form: Oily liquid, Solution, Suspension, Paste
Capsule size: Capsule size 00"-4"
Max. output: 1800 capsules/hour
Noise: ≤75 DB(A)
Weight: 2300kg
Dimensions: 3800×900×1900mm
TECHNICAL SPECIFICATIONS
PRODUCT PARAMETER
| Parameter | Specification |
|---|---|
| Model | FI- 300 CF /LS |
| Filling dosage form | oily liquid, solution, suspension, paste |
| Capsule size | Capsule size 00"-4 " |
| Max. output | 1800 Capsules / Hour |
| Environmental requirements | Room temperature around 20℃, humidity 40% -55% |
| Liquid loading accuracy | ±2% |
| Total power | 9k w |
| Power supply | AC 380V; 50Hz |
| Dimensions | 3800 × 900 × 19 00mm |
| Weight | 2300kg |
PRODUCT ADVANTAGES
Reliable Performance
Stable performance for continuous pharmaceutical production.
Easy Operation
Clear controls and practical adjustment for daily use.
Flexible Configuration
Configured to meet different process and output needs.
