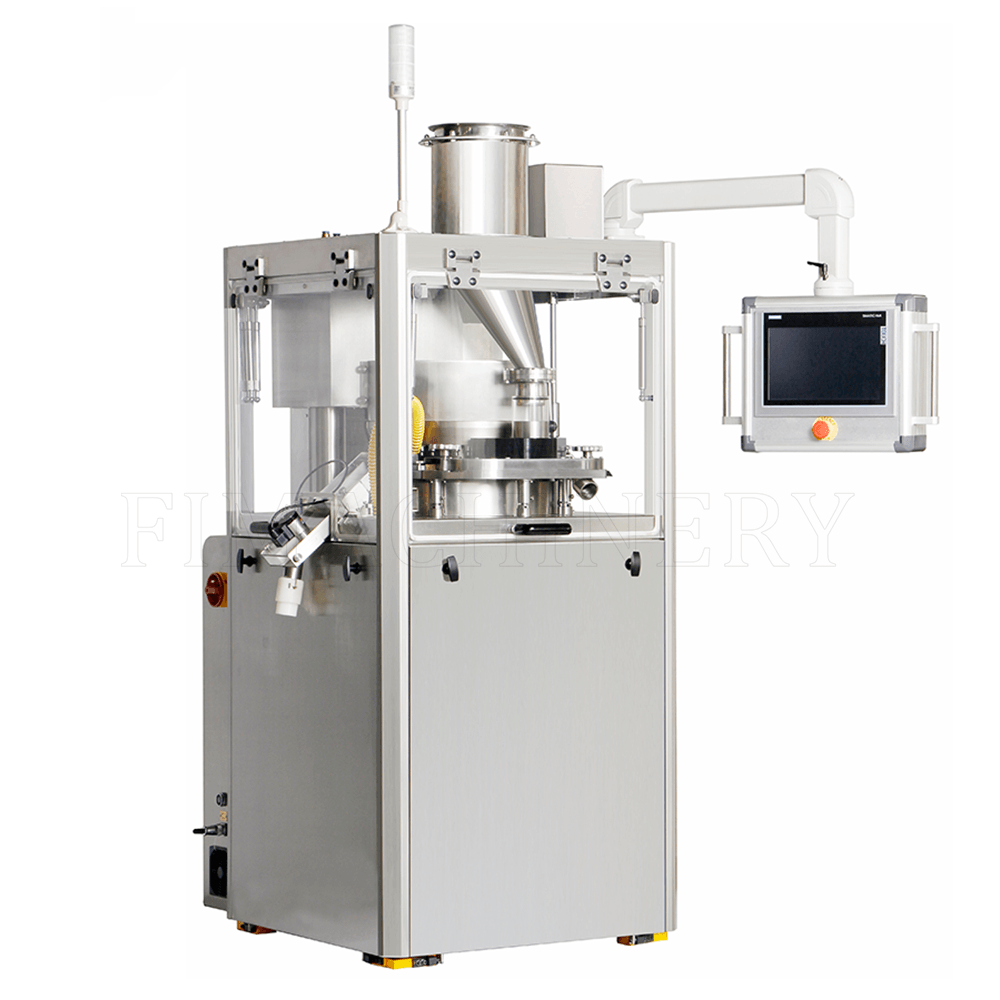

High Speed tablet Pressing Machine
FI-370HTP Series
The 370 Series single-sided high-speed tablet presses can finish the tablet press process in one turret rotation, including filling, dosing, prepressing, pressing and ejecting. These tablet presses feature a modular design. The frame structure of main machine is comprised of a base plate, left and right frames and an upper plate. All cam tracks are attached at the base. Upper cam track, upper pre-compression roller and upper main-press roller are attached to the supporting block. The stable three-column structure is engineered with strong bending and torsion resistance in order to meet the tough loading requirements when these machines operates at a high speeds.
Model: 370HTP Series
Punch quantity: 26-40 sets
Max. tablet diameter: 20mm
Max. output: 264000 tablets/hour
Dimensions: 1800×1100×1750mm
Details: Suitable applications：Pharmaceutical, food
TECHNICAL SPECIFICATIONS
PRODUCT PARAMETER
| Model | FI- 370/26 HTP | FI- 370/32 HTP | FI- 370/40 HTP |
|---|---|---|---|
| No. of stations | 26 | 32 | 40 |
| Punch type | D | B | BB |
| Output range (Tablets / Hour) | 20 000 – 1716 00 | 250 00 – 211000 | 31 000 – 264000 |
| Rotation speed range (rpm) | 13 to 110 | ||
| Max. main pressure (kN) | 100 | ||
| Max. Pre-pressure (kn) | 16 | ||
| Max. Filling Depth (mm) | 20mm | 16mm | 16mm |
| Range of Tablet Thickness (mm) | 1 to 8.5 | 1 to 8.5 | 1 to 8.5 |
| Max. Tablet Diameter (mm) | 25 | 16 | 13 |
| Weight (kg) | 1800 | ||
| Dimensions (mm) | 820 × 1100 × 1 750 |
PRODUCT ADVANTAGES
Reliable Performance
Stable performance for continuous pharmaceutical production.
Easy Operation
Clear controls and practical adjustment for daily use.
Flexible Configuration
Configured to meet different process and output needs.
