Fully Automatic Powder Capsule Filling Machine

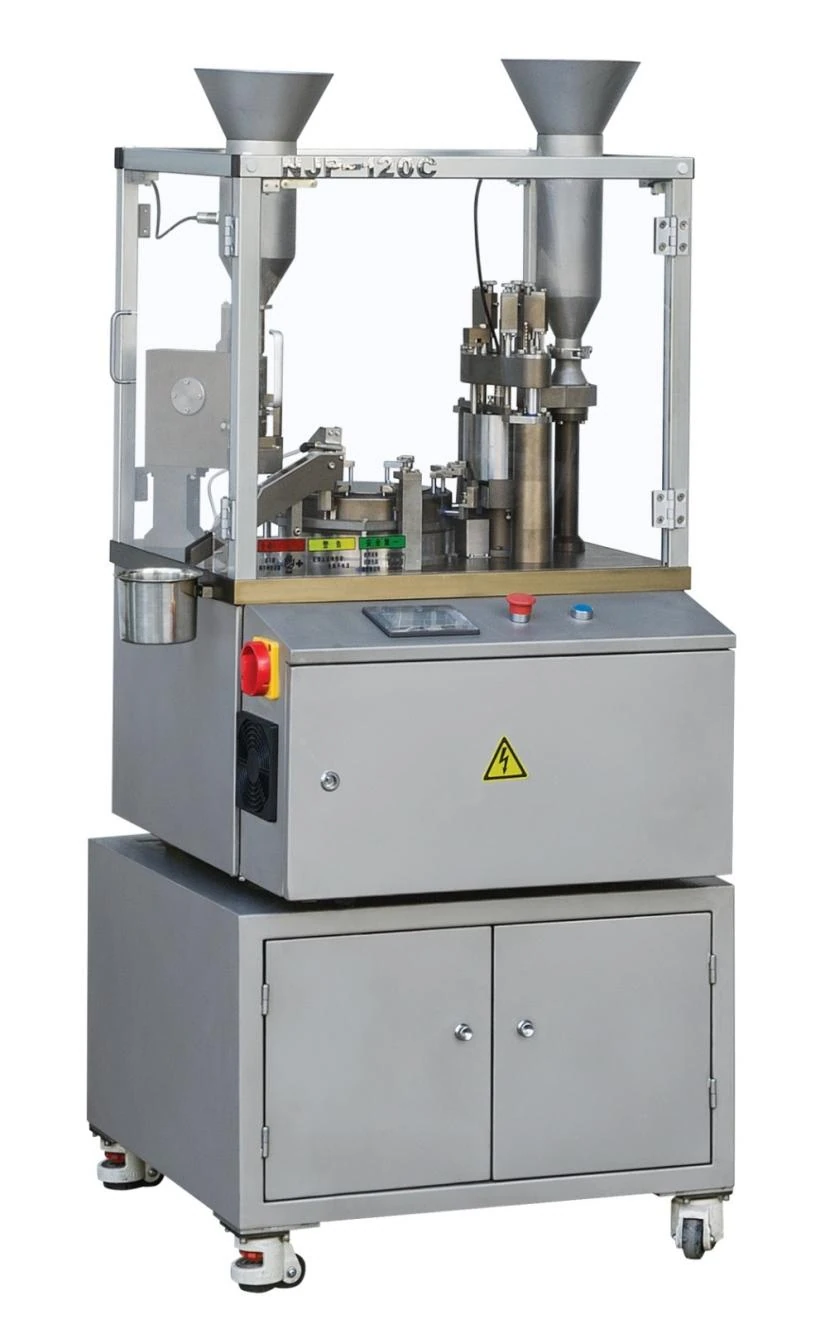

FI-120CF Laboratory Capsule Filling Machine
A compact automatic capsule filling machine designed for pharmaceutical companies, hospitals and laboratories conducting small-batch drug research and development.
Model: FI-120CF
Filling dosage form: Powder or pellets
Capsule size: Capsule size 00"-5" and safety capsules A-E
Max. output: 228000 capsules/hour
Noise: ≤75 DB(A)
Weight: 2200kg
Dimensions: 1500×1200×2200mm
TECHNICAL SPECIFICATIONS
PRODUCT PARAMETER
| Machine weight | 140kg |
|---|---|
| Overall dimension | 730 × 700 × 1500mm |
| Motor power | 0.7kw |
| Power supply | AC 220V, 50Hz |
| Max. Output | 7,200 capsules/h |
| Capsule size | 00#～5# and safety capsule A～E |
| Capsule using rate | ≥ 99.5% |
| Noise index | ≤ 75dBA |
| Dosage difference | ≤ ±3% (under more than 300mg dosing and 40~80 mesh after granulation) |
| Vacuum degree | -0.02～-0.06MPa |
| compressed air (for cleaning station) |
air consumption ≥8 m3/h pressure 0.4~0.6MPa |
| Working temperature | 21℃ ± 3℃ |
| Working relative humidity | 40～55% |
| Exhaust capacity | 50m3/h |
| Control system | Frequency conversion stepless speed regulation |
| Material | Spare part contact with medicine adopt superior S.S 304 & GMP compliable material |
| Criterion | Comply to GMP completely |
PRODUCT ADVANTAGES
Reliable Performance
Stable performance for continuous pharmaceutical production.
Easy Operation
Clear controls and practical adjustment for daily use.
Flexible Configuration
Configured to meet different process and output needs.
