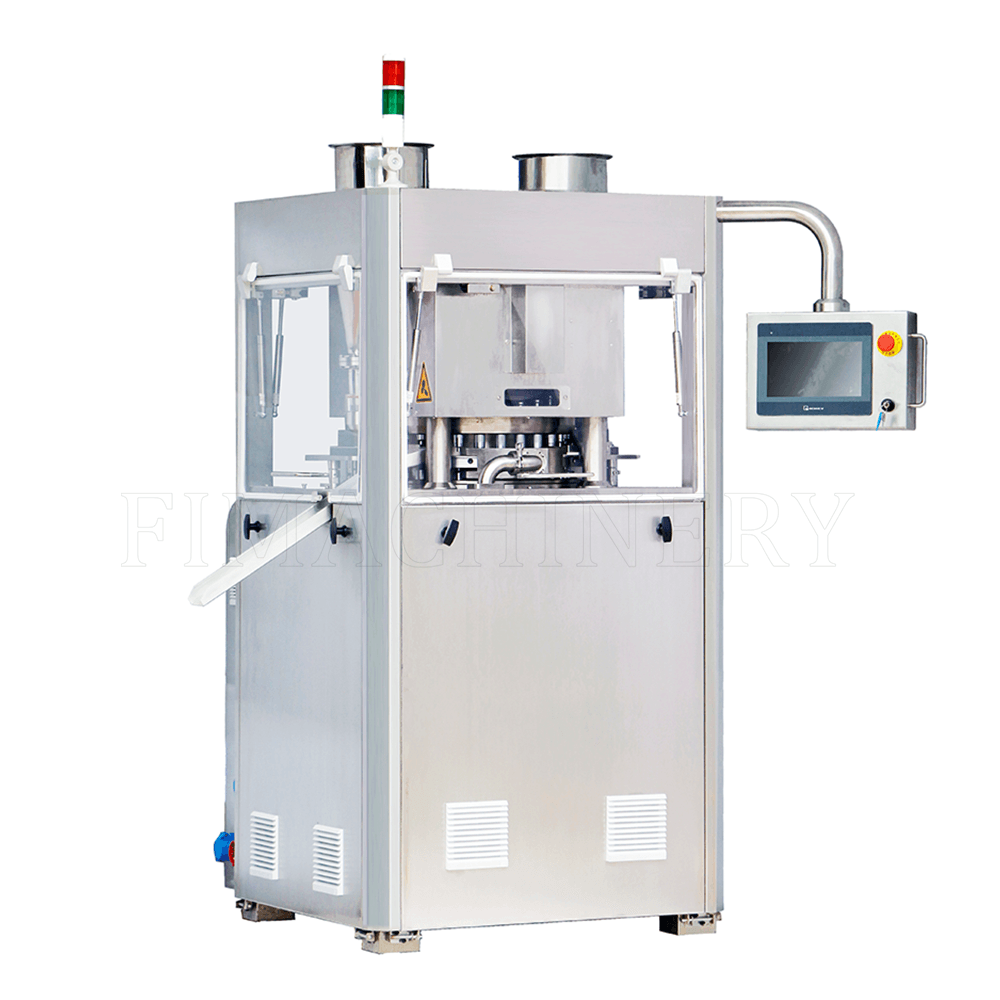

Rotary Tablet Pressing Machine
FI-420TP Series
FI-420TP series rotary tablet press has a wide scope of application. It is applicable not only to the pharmaceutical and food –stuff industry but also to the chemical, electric and battery industry for pressing the various kinds of granular materials into tablets.
Model: 420TP Series
Punch quantity: 27-39 sets
Max. tablet diameter: 30mm
Max. output: 163800 tablets/hour
Dimensions: 1240×980×1650mm
Details: Suitable applications：Pharmaceutical, food
TECHNICAL SPECIFICATIONS
PRODUCT PARAMETER
| Model | FI-420/31TP | FI-420/31TP | FI-420/39TP |
|---|---|---|---|
| No. of stations | 27 | 31 | 39 |
| Max. output (Tablets / Hour) | 81000 | 130200 | 163800 |
| Max. main pressure (kn) | 100 | 80 | 60 |
| Max. Filling Depth (mm) | 15 | 15 | 15 |
| Range of Tablet Thickness (mm) | 1 to 6 | 1 to 6 | 1 to 6 |
| Max. Tablet Diameter (mm) | 30 | 20 | 13 |
| Weight (kg) | 1850 | ||
| Dimensions (mm) | 1240 × 980 × 1 650 |
PRODUCT ADVANTAGES
Reliable Performance
Stable performance for continuous pharmaceutical production.
Easy Operation
Clear controls and practical adjustment for daily use.
Flexible Configuration
Configured to meet different process and output needs.
