High Speed tablet Pressing Machine

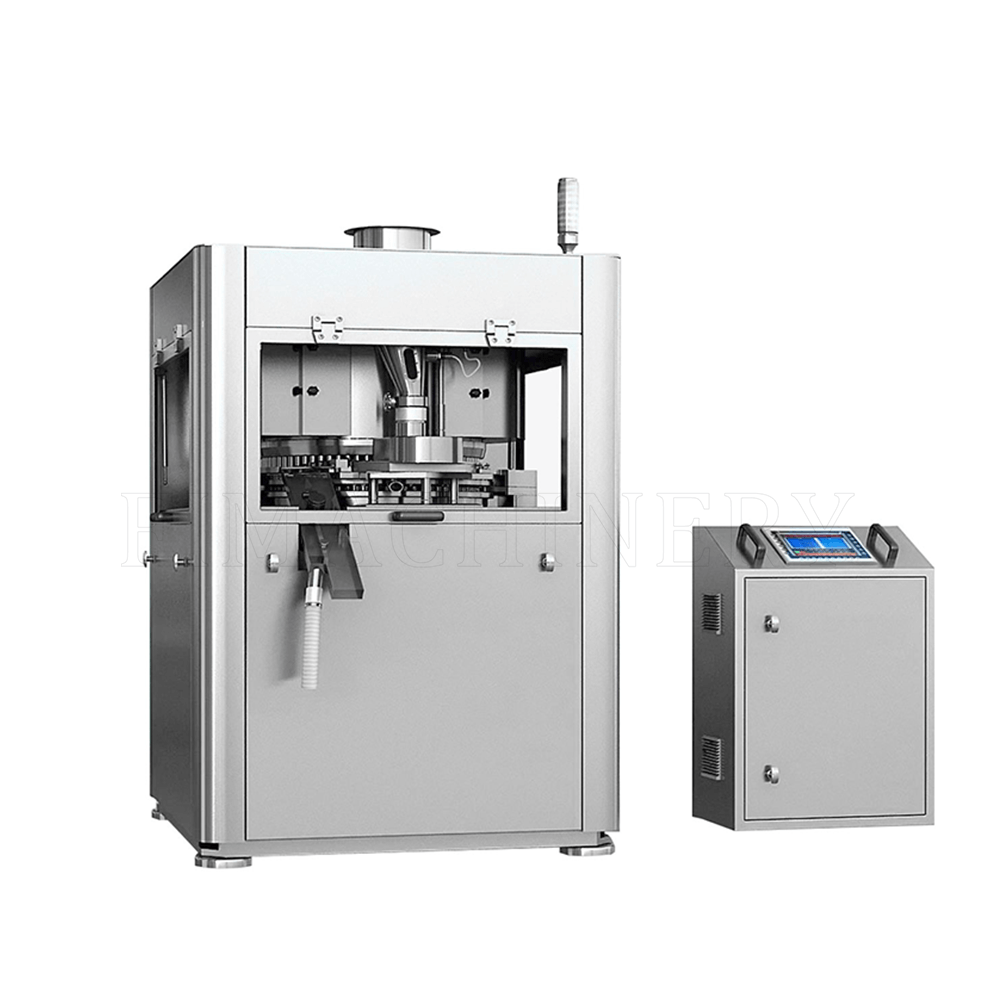

FI-720HTP Series High-speed Tablet Press Machine
720 Series are automatic single-sided high-speed tablet presses featuring three rollers, as well as three compression stations consisting of the same structure and diameter. This multifunctional tablet press has an exchangeable turret and is capable of producing single- and double-layer tablets. The 720 Series single-sided tablet presses are know for their modular structure design and fully meeting GMP requirements. Major components of this machine including a track-, a main-press roller, a pre-compression roller, a feeder and a dosing device which are easy to dismantle, clean and maintain .
Model: 720HTP Series
Punch quantity: 51-83 sets
Max. tablet diameter: 20mm
Max. output: 796000 tablets/hour
Dimensions: 1300×1300×2000mm
Details: Suitable applications：Pharmaceutical, food
TECHNICAL SPECIFICATIONS
PRODUCT PARAMETER
| Model | FI- 720/51 HTP | FI- 720/65 HTP | FI- 720/83 HTP |
|---|---|---|---|
| No. of stations | 51 | 65 | 83 |
| Punch type | D | B | BB |
| Output range (Tablets / Hour) | 47000 – 470000 | 62400 – 624000 | 79600 – 796000 |
| Rotation speed range (rpm) | 8 to 80 | ||
| Max. main pressure (kn) | 100 | ||
| Max. Filling Depth (mm) | 20 | 18 | 18 |
| Range of Tablet Thickness (mm) | 1 to 8.5 | 1 to 8.5 | 1 to 8.5 |
| Max. Tablet Diameter (mm) | 25 | 16 | 13 |
| Weight (kg) | 5500 | ||
| Dimensions (mm) | 13 00 × 13 00 × 2000 |
PRODUCT ADVANTAGES
Reliable Performance
Stable performance for continuous pharmaceutical production.
Easy Operation
Clear controls and practical adjustment for daily use.
Flexible Configuration
Configured to meet different process and output needs.
