Fully Automatic Powder Capsule Filling Machine

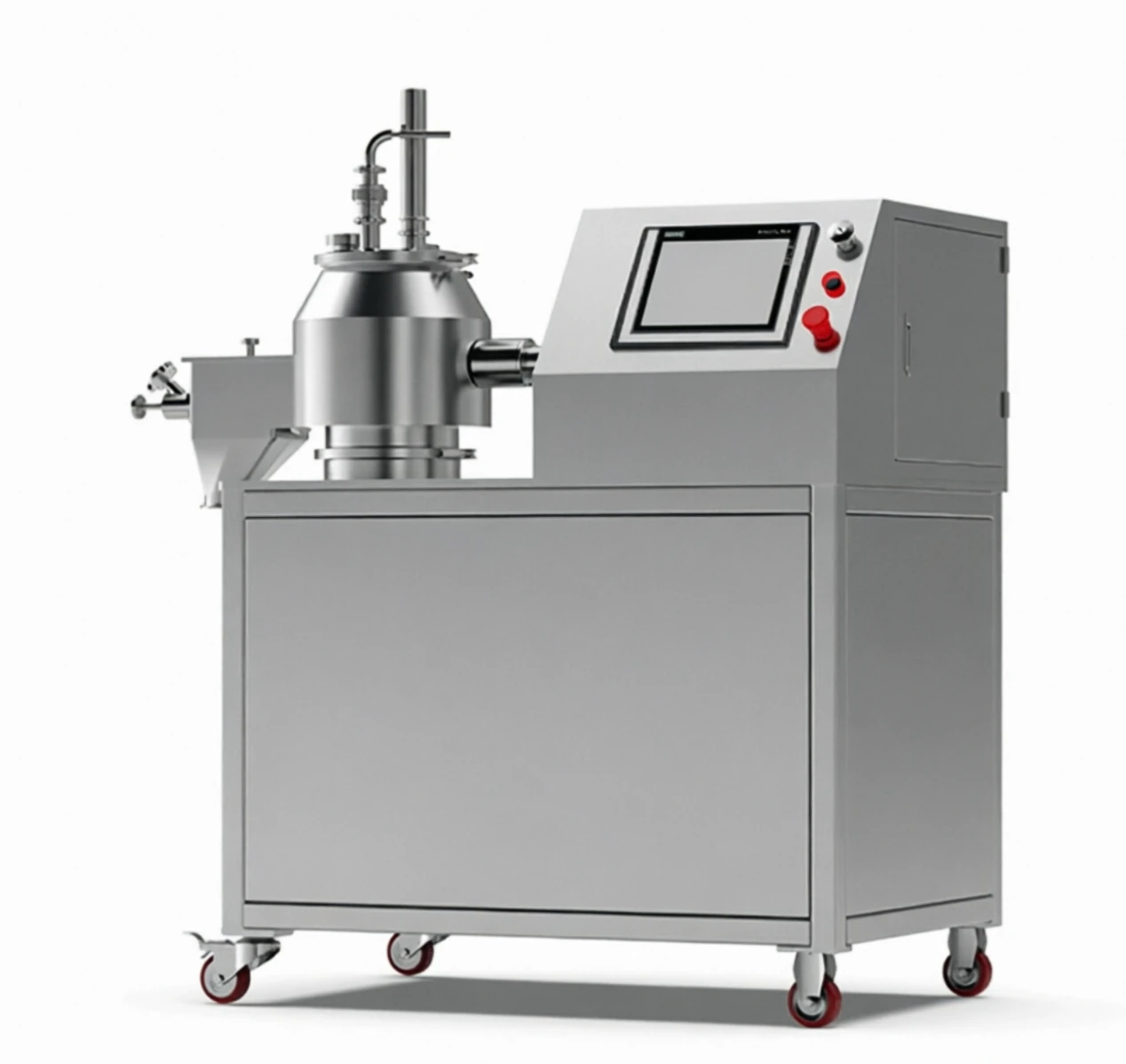

FI-LRMG Series Laboratory Wet Type Mixing Granulator
The machine is mainly suitable for small batch granulation process in the laboratory. Powder material and adhesive are mixed at high speed, then cut into uniform wet granules. It is widely used in pharmaceutical, food and chemical industries.
Model: FI-LRMG
Filling dosage form: Powder or pellets
Capsule size: Capsule size 00"-5" and safety capsules A-E
Max. output: 468000 capsules/hour
Noise: ≤75 DB(A)
Weight: 3500kg
Dimensions: 1450×1920×2400mm
TECHNICAL SPECIFICATIONS
PRODUCT PARAMETER
| Item Model | Item Model | LRMG- 3 | LRMG- 6 | LRMG- 10 | LRMG- 15 | LRMG- 25 | LRMG- 50 |
|---|---|---|---|---|---|---|---|
| Production capacity (kg/batch) | Production capacity (kg/batch) | 0.6-1.2 | 1.2-2.4 | 2-4 | 3-6 | 5-10 | 10-20 |
| Mixing impeller motor power(kw) | Mixing impeller motor power(kw) | 1.5 | 1.5 | 1.5 | 4 | 4 | 4 |
| Mixing impeller rotation speed(rpm) | Mixing impeller rotation speed(rpm) | 0-400 | 0-400 | 0-400 | 0-220 | 0-220 | 0-220 |
| Granulating agitator motor power(kw) | Granulating agitator motor power(kw) | 1.1 | 1.1 | 1.1 | 2.2 | 2.2 | 2.2 |
| Granulating agitator rotation speed(rpm) | Granulating agitator rotation speed(rpm) | 0-2900 | 0-2900 | 0-2900 | 0-2900 | 0-2900 | 0-2900 |
| Compressed air consumption(m³/min) | Compressed air consumption(m³/min) | 0.1 | 0.1 | 0.1 | 0.3 | 0.3 | 0.3 |
| Compressed air pressure(MPa) | Compressed air pressure(MPa) | 03.-0.6 | 03.-0.6 | 03.-0.6 | 03.-0.6 | 03.-0.6 | 03.-0.6 |
| Equipment weight(kg) | Equipment weight(kg) | 250 | 270 | 300 | 400 | 430 | 450 |
| Outline dimensions |
L | 1400 | 1425 | 1450 | 1525 | 1550 | 1600 |
| Outline dimensions |
L1 | 1000 | 1000 | 1000 | 1100 | 1100 | 1100 |
| Outline dimensions |
W | 700 | 700 | 700 | 750 | 750 | 750 |
| Outline dimensions |
H | 1110 | 1120 | 1140 | 1250 | 1300 | 1350 |
| Outline dimensions |
H1 | 750 | 750 | 750 | 750 | 750 | 750 |
| Outline dimensions |
H2 | 730 | 730 | 730 | 720 | 720 | 720 |
PRODUCT ADVANTAGES
Reliable Performance
Stable performance for continuous pharmaceutical production.
Easy Operation
Clear controls and practical adjustment for daily use.
Flexible Configuration
Configured to meet different process and output needs.
