Counting Machine

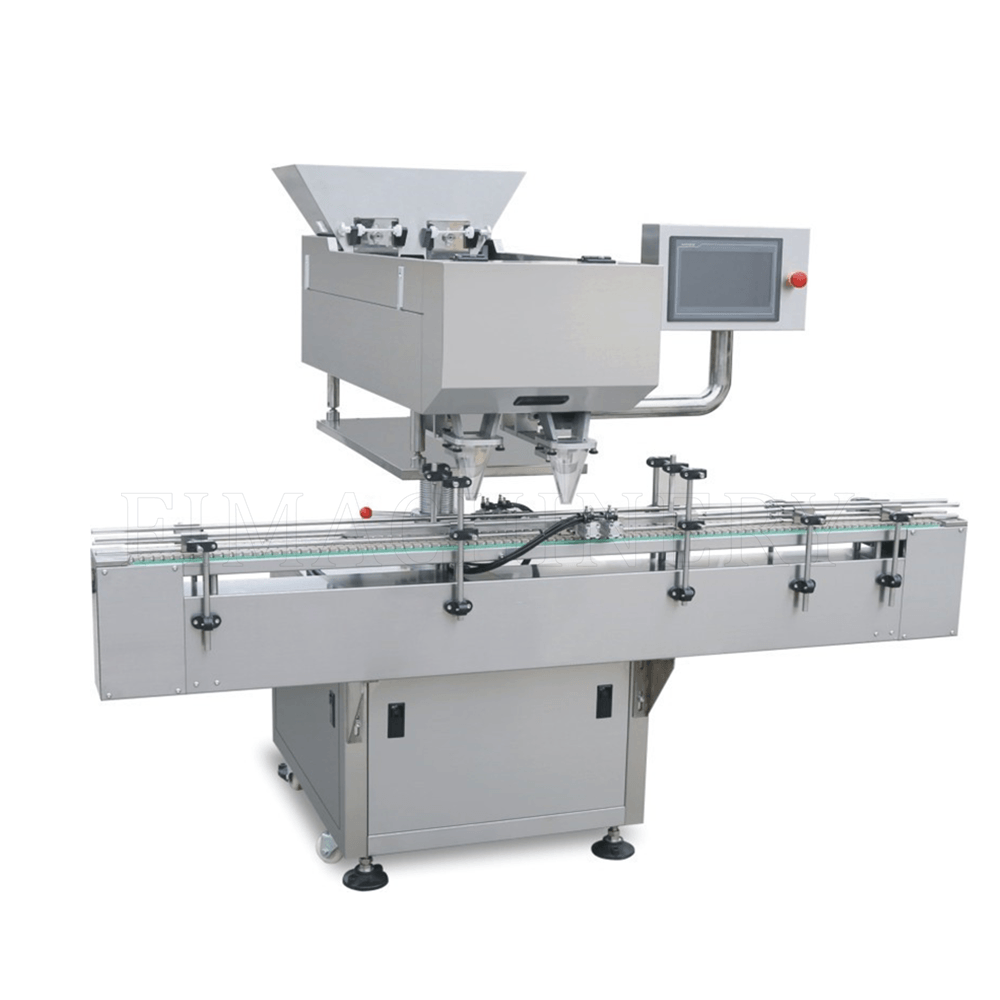

FI-8EC Counting Machine
FI-8/12EC consists of hopper, vibratory conveyor, photoelectric sensor, dust storage box, HMI and PLC control system, with features of low energy consumption, stable running, low noise . Accurate counting ,counting error lower than national standard. With automatic detection for bottle lacking and automatic rejection of error counting, together with data monitoring control, safety protection and failure alarm. 15 sets of operation parameters can be settled freely as per request.
Model: 8EC
Max. output: 60 bottles/min
Applicable range: 15-300ml
Features: Control system adopts PLC and HMI
Weight: 220kg
Dimensions: 1600×1600×1600mm
TECHNICAL SPECIFICATIONS
PRODUCT PARAMETER
| Parameter | Specification |
|---|---|
| Model | FI- 8/12 EC |
| Output | 20-60 bottles / min |
| Applicable range | 15-300 ml |
| Air Supply | Air consumption: 0.5 m³ /h Pressure: 4 -6 Kg |
| Dimensions | 1600 × 1600 ×1 60 0 mm |
| Weight | 220kg |
PRODUCT ADVANTAGES
Reliable Performance
Stable performance for continuous pharmaceutical production.
Easy Operation
Clear controls and practical adjustment for daily use.
Flexible Configuration
Configured to meet different process and output needs.
