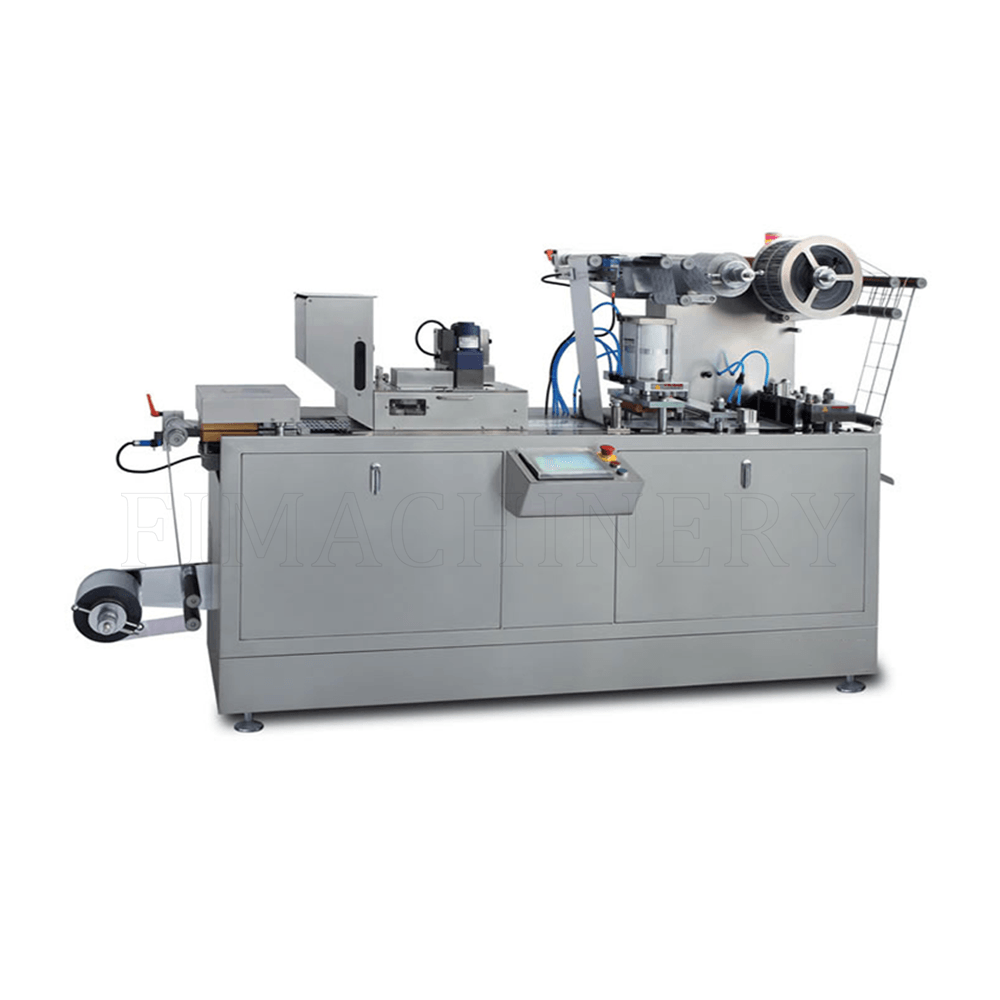

Alu-plastic Blister Packing Machine
FI-88/140BP Model
FI- 88 /140BP flat-plate a utomatic blister packing machine is specially designed for hospital dosage room, laboratory institute, health care product, middle-small pharmacy factory, and featured by compact machine body, easy ops ration, multi function, stroke adjustable, It is suitable for the ALU-PVC. package of Medicine, food, electric parts, etc．
Model: 140BP
Punch frequency: 8-35 times/min
Max forming area and depth: 140×110×10mm
Details: Features：Meet GMP requirement
Weight: 1000kg
Dimensions: 2300×560×1410mm
TECHNICAL SPECIFICATIONS
PRODUCT PARAMETER
| Model | FI- 88 BP | FI-140BP |
|---|---|---|
| Capacity | 2100 pcs/hour | 4200 pcs/hour |
| Punch frequency | 8 ~ 35 times/min | 8 ~ 35 times/min |
| Max forming area and depth | 90 × 70 ×10 mm | 14 0×110×10 mm |
| Air Supply | Air consumption: 9 m³ /h Pressure: 6 -8 Kg | Air consumption: 9 m³ /h Pressure: 6 -8 Kg |
| Dimensions | 1600×500×1200mm | 2300×560×1410mm |
| Weight | 600kg | 1000kg |
PRODUCT ADVANTAGES
Reliable Performance
Stable performance for continuous pharmaceutical production.
Easy Operation
Clear controls and practical adjustment for daily use.
Flexible Configuration
Configured to meet different process and output needs.
