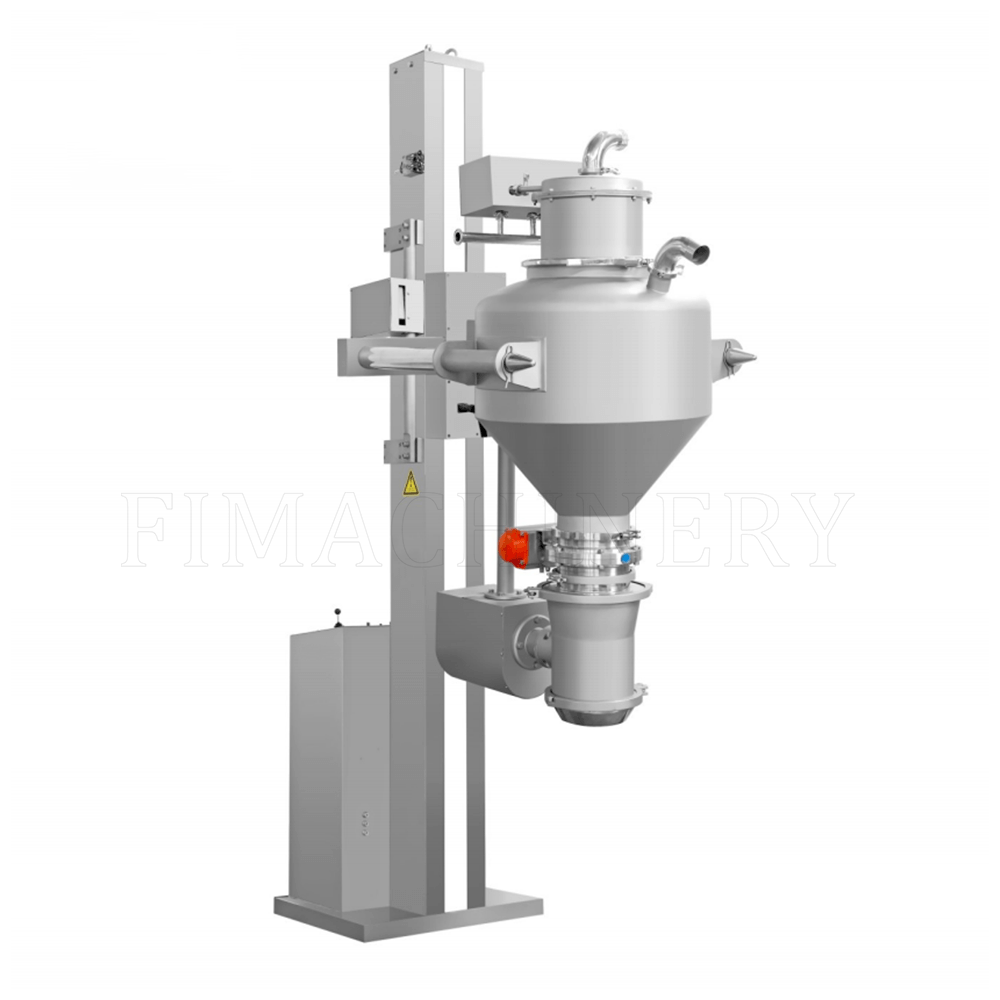

Dry Mill
FI-DM Series
During operation, the materials are sucked into the buffer tank through the vacuum feeder. The granules flow from the buffer tank to the cavity of the granulator, and the granules in the cavity are subjected to impact, extrusion, shearing, and then dischar ged through the screen hole, and flow through the discharge port of the guide tube to the hopper. In the closed premise to complete the material transfer, the whole process .
Model: DM Series
Features: Meet GMP requirement
Production capacity: 100-700 kg/batch
Suitable applications: Pharmaceutical, food, chemical
Personality: The company can customize production according to customer demand
TECHNICAL SPECIFICATIONS
PRODUCT PARAMETER
| Model | Production Capacity (kg/h ) | lifting Motor Power (kw) | Screen Specification ( mm ) | Granule Sizing Power (kw) |
|---|---|---|---|---|
| FI- 100DM | 100 | 1.5 | 0.6-3 | 1.1 |
| FI- 200DM | 450 | 2.2 | 0.6-3 | 3.0 |
| FI- 300DM | 450 | 2.2 | 0.6-3 | 3.0 |
| FI- 500DM | 450 | 3.0 | 0.6-3 | 3.0 |
| FI- 700DM | 700 | 3.0 | 0.6-3 | 4.0 |
PRODUCT ADVANTAGES
Reliable Performance
Stable performance for continuous pharmaceutical production.
Easy Operation
Clear controls and practical adjustment for daily use.
Flexible Configuration
Configured to meet different process and output needs.
