Fluid Bed Dryer

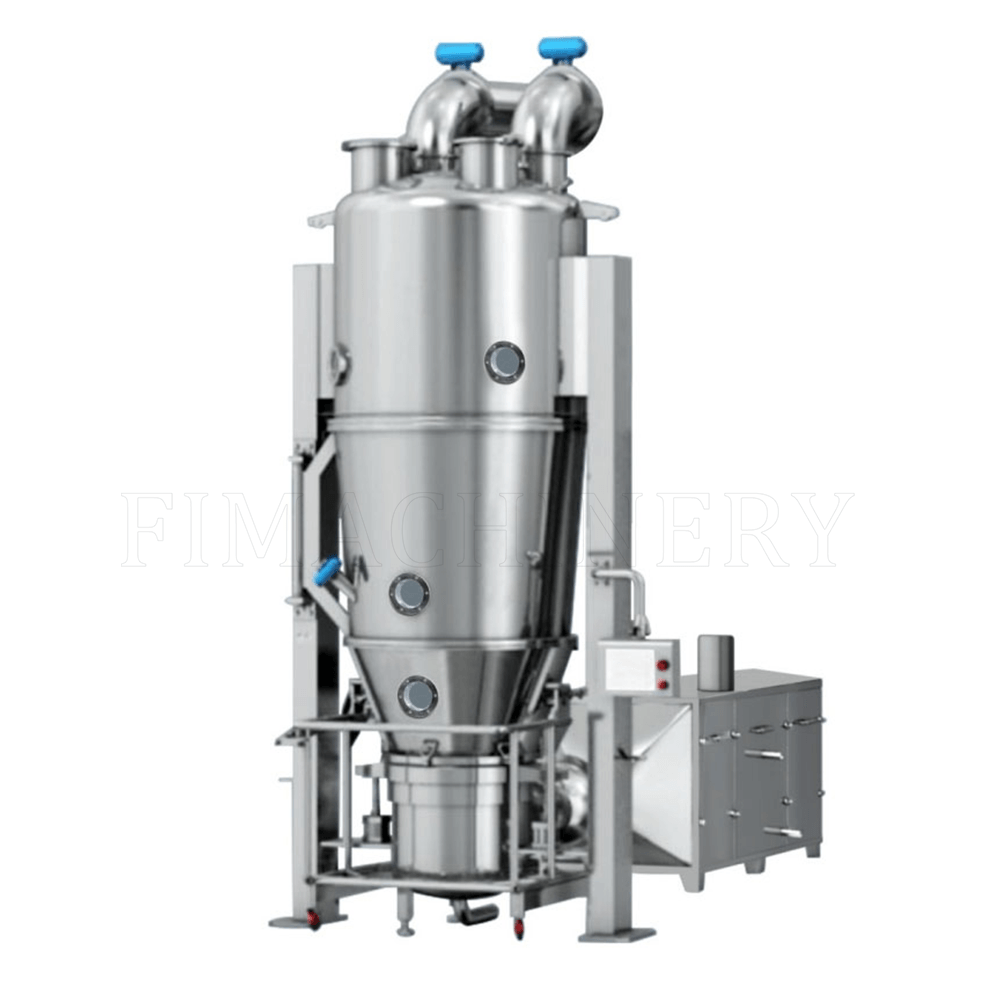

FI-FBD Series Fluid Bed Dryer
After purified and heated, the air sucked from the bottom of the fluid bed granulate by the induced draft fan, and then passes through the air flow distribution plate of the material silo, so that the material powder particles or wet granules under boiling and fluidizing status in the raw material container, After the granules are preheated by the purified and heated air and mixed, their moisture is evaporated. This process will be carried out continuously and repetitively to form ideal and uniform dry granules .
Model: FBD Series
Features: Easy cleaning, PLC control
Production capacity: 5-500 kg/batch
Suitable applications: Pharmaceutical, food, chemical
Personality: The company can customize production according to customer demand
TECHNICAL SPECIFICATIONS
PRODUCT PARAMETER
| Model | Vessel Volume (L) | Production Capacity (kg/batch) | Fan Power (kw) | Electric Heating Power (kw) |
|---|---|---|---|---|
| FI- 15FBD | 45 | 5-15 | 7.5 | 30 |
| FI- 30FBD | 100 | 15-30 | 11 | 30 |
| FI- 60FBD | 220 | 30-60 | 22 | 30 |
| FI- 120FBD | 330 | 60-120 | 30 | 45 |
| FI- 200FBD | 557 | 120-200 | 37 | 80 |
| FI- 300FBD | 980 | 200-300 | 45 | 90 |
| FI- 500FBD | 1530 | 300-500 | 75 | 120 |
PRODUCT ADVANTAGES
Reliable Performance
Stable performance for continuous pharmaceutical production.
Easy Operation
Clear controls and practical adjustment for daily use.
Flexible Configuration
Configured to meet different process and output needs.
