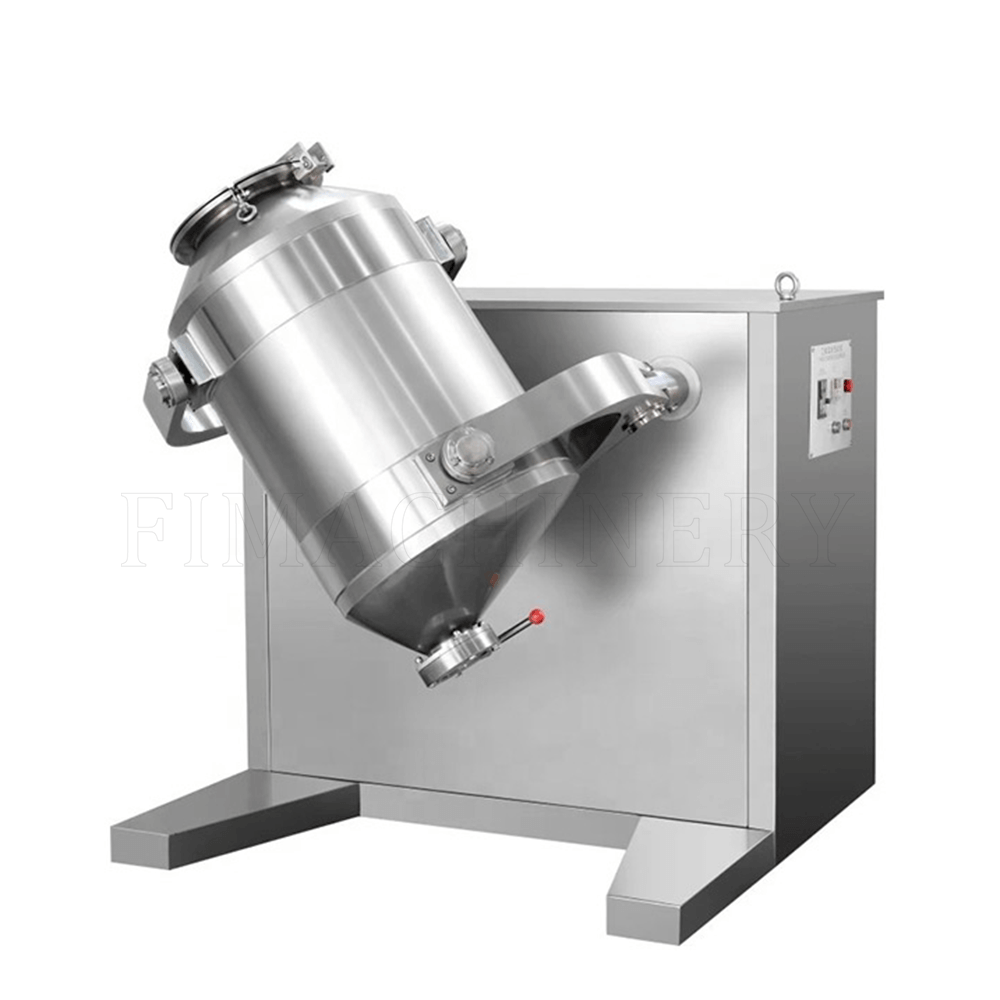

Multi Direction Mixing Machine
FI-MM Series
Overview: The mixing barrel of the machine moves in multi-direction. For the materials, there is no centrifugal function, without the specific gravity segregation and the layer division. For each of build-up phenomenon, there is the remarkable weight rate. The mixing rate is up to 100%.The machine is the desired product in various mixers at present. The barrel material charge rate is big. The Maximum rate can be up to 80 %(the common mixer has only 40% charge rate).It is high in efficiency and short in the mixing time.
Model: MM Series
Features: Meet GMP requirement
Production capacity: 6-800 kg/batch
Suitable applications: Pharmaceutical, food, chemical
Personality: The company can customize production according to customer demand
TECHNICAL SPECIFICATIONS
PRODUCT PARAMETER
| Model | Total Volume (L) | Working Capacity (L) | Speed (rpm) | Total Power (kw) |
|---|---|---|---|---|
| FI- 50MM | 50 | 40 | 12 | 0.75 |
| FI- 100MM | 100 | 75 | 12 | 1.5 |
| FI- 200MM | 200 | 160 | 12 | 2.2 |
| FI- 400MM | 400 | 320 | 12 | 4 |
| FI- 600MM | 600 | 480 | 12 | 5.5 |
| FI- 800MM | 800 | 640 | 12 | 7.5 |
| FI- 1000MM | 1000 | 800 | 12 | 11 |
PRODUCT ADVANTAGES
Reliable Performance
Stable performance for continuous pharmaceutical production.
Easy Operation
Clear controls and practical adjustment for daily use.
Flexible Configuration
Configured to meet different process and output needs.
