Rapid Mixing Granulator

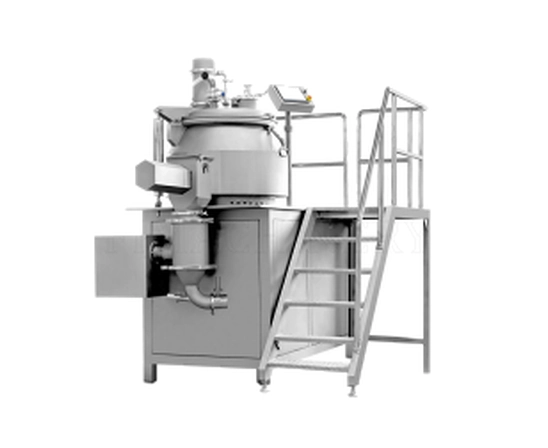

FI-RMG Series High Shear Wet Type Mixing Granulator
The materials are fed into the mixing vessel through the vacuum feeder or lifting feeder. Through rotation and push by the mixing paddle at the bottom, they first move under a fluidizing status and get sufficient mixing. Then the adhesive is injected throug h the pressure spray gun to turn the dry powders into wet and soft materials. Meanwhile, they are made into even wet granules under the double actions of the mixing paddle and the high-speed cutter on the side wall.
Model: RMG Series
Features: Easy cleaning, PLC control
Production capacity: 20-320 kg/batch
Suitable applications: Pharmaceutical, food, chemical
Personality: The company can customize production according to customer demand
TECHNICAL SPECIFICATIONS
PRODUCT PARAMETER
| Model | Production Capacity ( kg/batch ) | Mixing Motor Power ( kw ) | Mixing Paddle Rotation Speed (rpm) | Granulating Knife Rotation Speed (rpm) |
|---|---|---|---|---|
| FI- 100 RMG | 20-40 | 11 | 0-200 | 0-2900 |
| FI-150RMG | 30-60 | 15 | 0-200 | 0-2900 |
| FI-2 00RMG | 40-80 | 22 | 0-200 | 0-2900 |
| FI-3 00RMG | 60-120 | 30 | 0-200 | 0-2900 |
| FI-4 00RMG | 80-160 | 30 | 0-200 | 0-2900 |
| FI-500RMG | 100-200 | 34 | 0-170 | 0-2900 |
| FI-6 00RMG | 120-240 | 45 | 0-170 | 0-2900 |
| FI-8 00RMG | 160-320 | 55 | 0-150 | 0-2900 |
PRODUCT ADVANTAGES
Reliable Performance
Stable performance for continuous pharmaceutical production.
Easy Operation
Clear controls and practical adjustment for daily use.
Flexible Configuration
Configured to meet different process and output needs.
