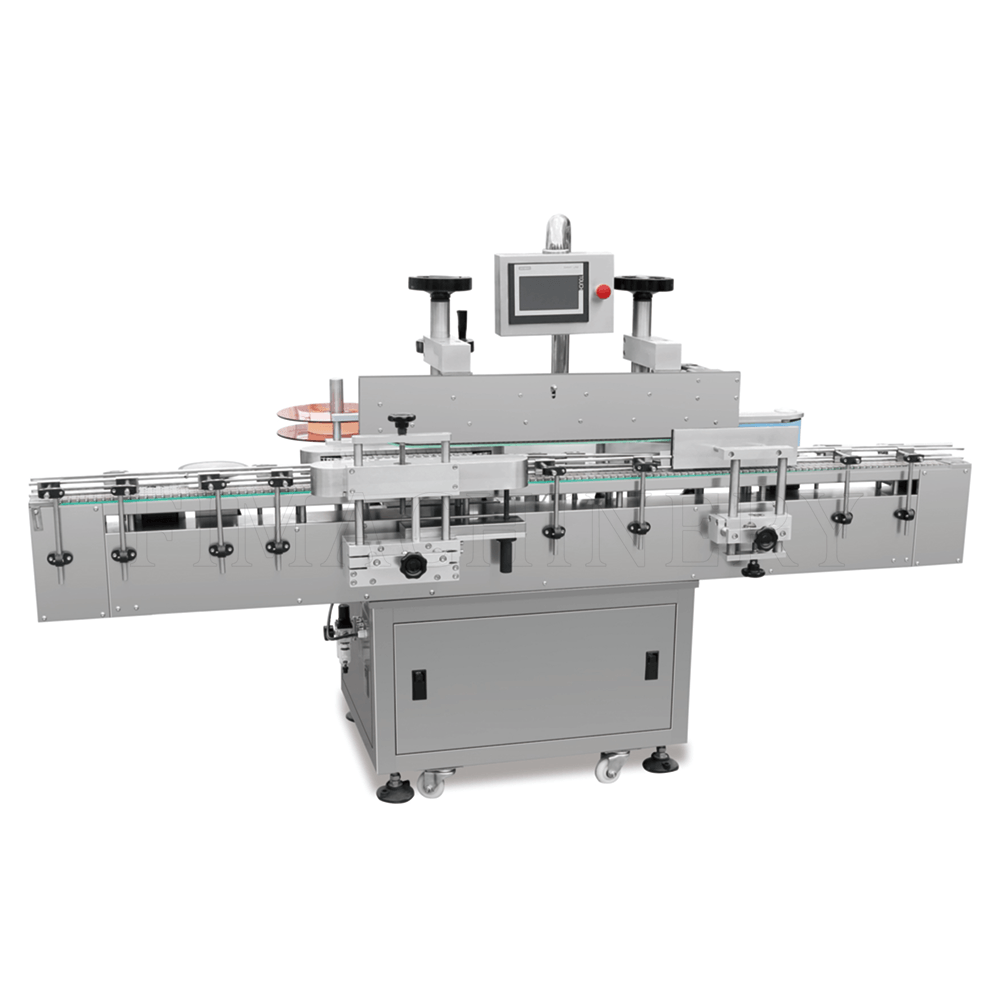

FI-SL Labeling Machine
FI-SLM add the square bottle positioning device based on round bottle labeler. Adopts Germany Siemens PLC, HMI, inverter, and Japan Panasonic servo system, which is easy to operate and convenient to maintain. The machine adopts servo motor to ensure accurate labeling position and stable operation, and the position is adjustable.
Model: FI-SLM
Output: 20-160 bottles/min
Applicable range: 15-300ml
Air Supply: Air consumption: 0.2 m³/h
Pressure: 4-6Kg
Dimensions: 2400×1350×1650mm
Weight: 350kg
TECHNICAL SPECIFICATIONS
PRODUCT PARAMETER
| Parameter | Specification |
|---|---|
| Model | FI-SLM |
| Output | 20-160 bottles/min |
| Applicable range | 15-300ml |
| Air Supply | Air consumption: 0.2 m³/h Pressure: 4-6Kg |
| Dimensions | 2400×1350×1650mm |
| Weight | 350kg |
PRODUCT ADVANTAGES
Reliable Performance
Stable performance for continuous pharmaceutical production.
Easy Operation
Clear controls and practical adjustment for daily use.
Flexible Configuration
Configured to meet different process and output needs.
