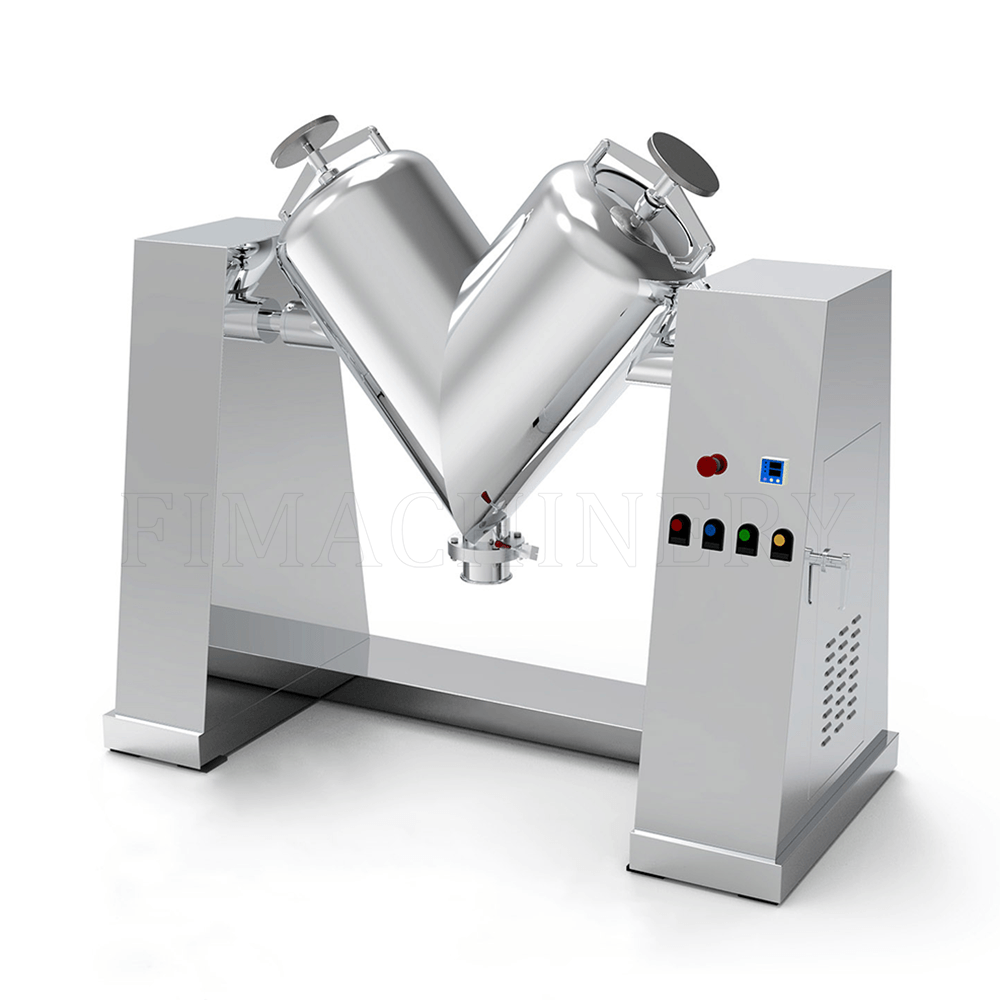

V-type Mixing Machine
FI-VM Series
Overview: V-type mixer is composed of two cylinder V-type container welded together, the shape of the container is a symmetry to the axis. Since rotational movement, the powder grains continuous alternately repeated, split, merge in the tilt cylinder. Material randomly pass from one area to another. While the powdered or granular particles slipped, multiple stacked in space. The particle continuously distributed on the surface of the newly generated. As this, repeated cutting, diffusion mixing, and no mixing dead corner.
Model: VM Series
Features: Meet GMP requirement
Production capacity: 5-1000 kg/batch
Suitable applications: Pharmaceutical, food, chemical
Personality: The company can customize production according to customer demand
TECHNICAL SPECIFICATIONS
PRODUCT PARAMETER
| Model | Total Volume (L) | Working Capacity (L) | Speed (rpm) | Total Power (kw) |
|---|---|---|---|---|
| FI-50VM | 50 | 25 | 25 | 0.55 |
| FI-150VM | 150 | 75 | 20 | 0.75 |
| FI-300VM | 300 | 150 | 20 | 1.1 |
| FI-500VM | 500 | 250 | 18 | 1.5 |
| FI-1000VM | 1000 | 500 | 15 | 3 |
| FI-1500VM | 1500 | 750 | 12 | 4 |
| FI-2000VM | 2000 | 1000 | 12 | 5.5 |
PRODUCT ADVANTAGES
Reliable Performance
Stable performance for continuous pharmaceutical production.
Easy Operation
Clear controls and practical adjustment for daily use.
Flexible Configuration
Configured to meet different process and output needs.
