Tablet Auxiliary Equipment

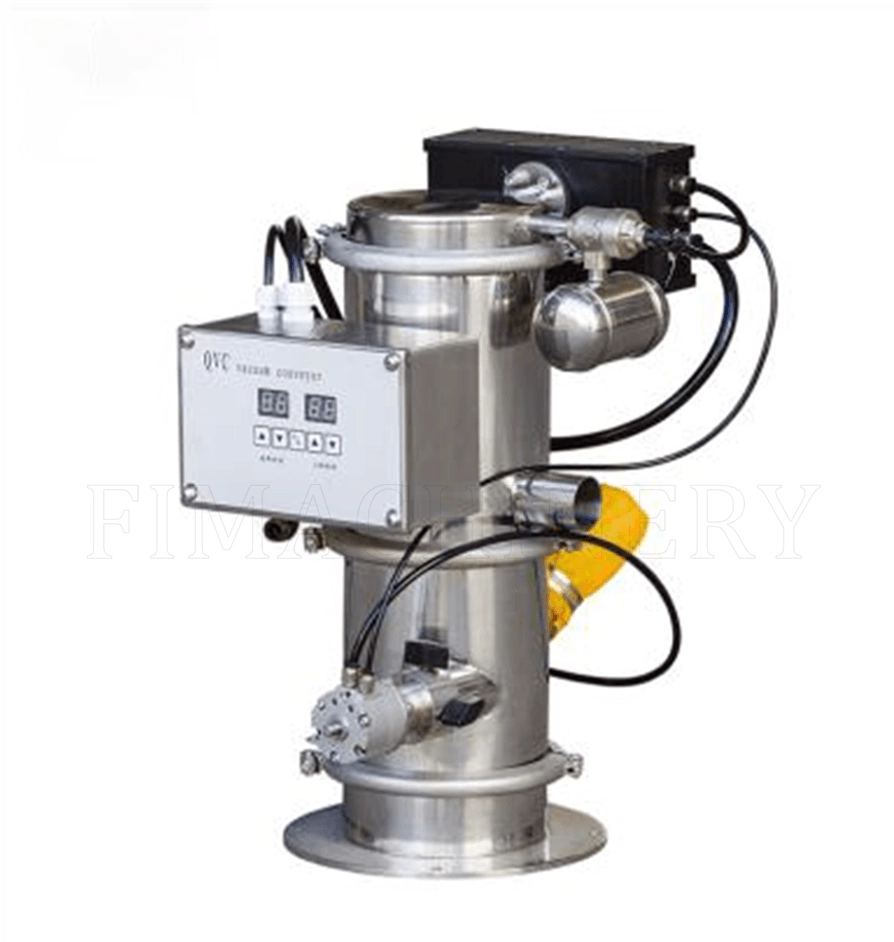

Powder Feeder
Pneumatic vacuum feeder uses compressed air to produce high vacuum through vacuum generator to realize material transportation. No mechanical vacuum pump is needed. It has the advantages of simple structure, small volume, maintenance free, low noise, convenient control, eliminating material static electricity and meeting GMP requirements.
Model: PVF Series
Max. output: 500 kg/hour
Weight: 95kg
Air Consumption: 22 m³/h
Supply Pressure: 0.6Mpa
Dimensions: φ220×620mm
TECHNICAL SPECIFICATIONS
PRODUCT PARAMETER
| Model | Conveying capacity | Air Consumption | Supply Pressure | Dimensions |
|---|---|---|---|---|
| FI-1PVF | 250kg/h | 11m³/h | 0.6Mpa | φ140×560mm |
| FI-2PVF | 500kg/h | 22m³/h | 0.6Mpa | φ220×620mm |
PRODUCT ADVANTAGES
Reliable Performance
Stable performance for continuous pharmaceutical production.
Easy Operation
Clear controls and practical adjustment for daily use.
Flexible Configuration
Configured to meet different process and output needs.
